Receiver and File Maintenance
GR-5 Operator’s Manual
5-22
5.
Browse for and select the receiver board’s RAM file and Flash
file

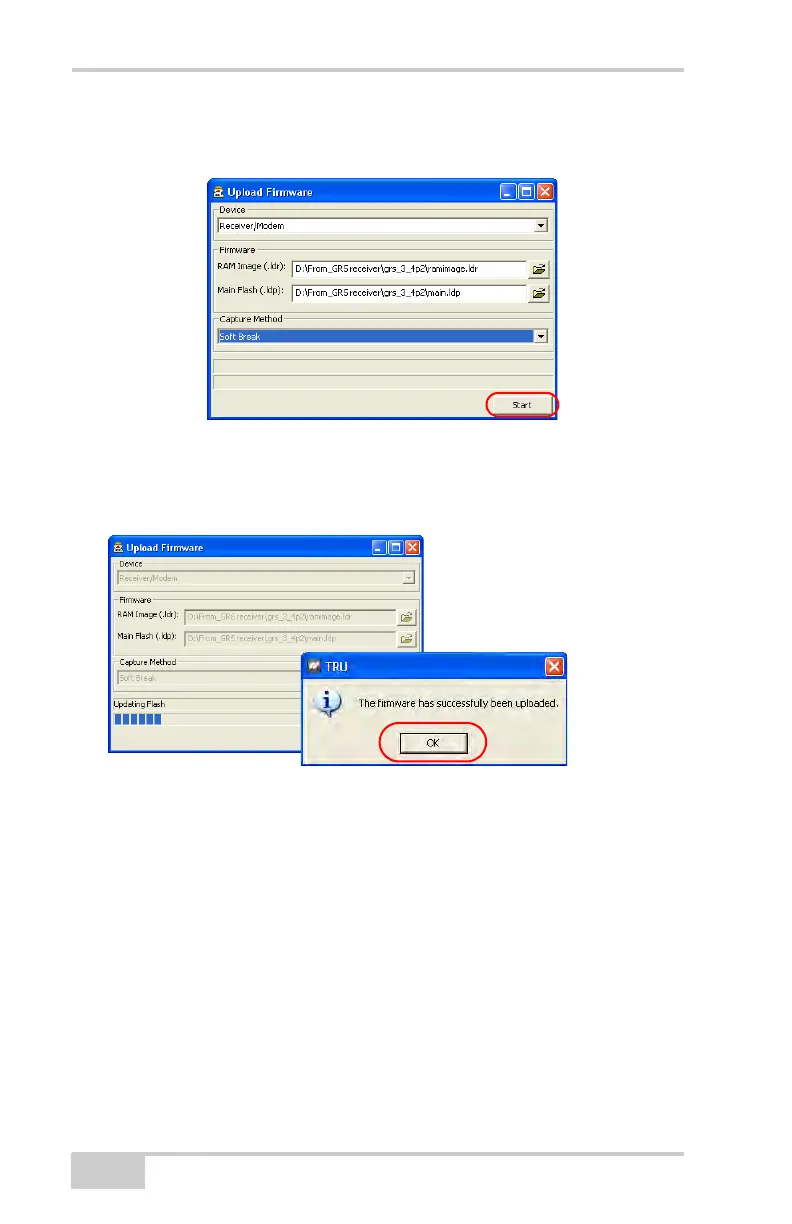

Figure 5-20. Upload Firm
ware Dialog Box
6.
Click
St
a
r
t
to upload the selected files.
7.
Click OK to complete upload
ing new firmware to the receiver.
