GR-5 Configuration
GR-5 Operator’s Manual
3-18

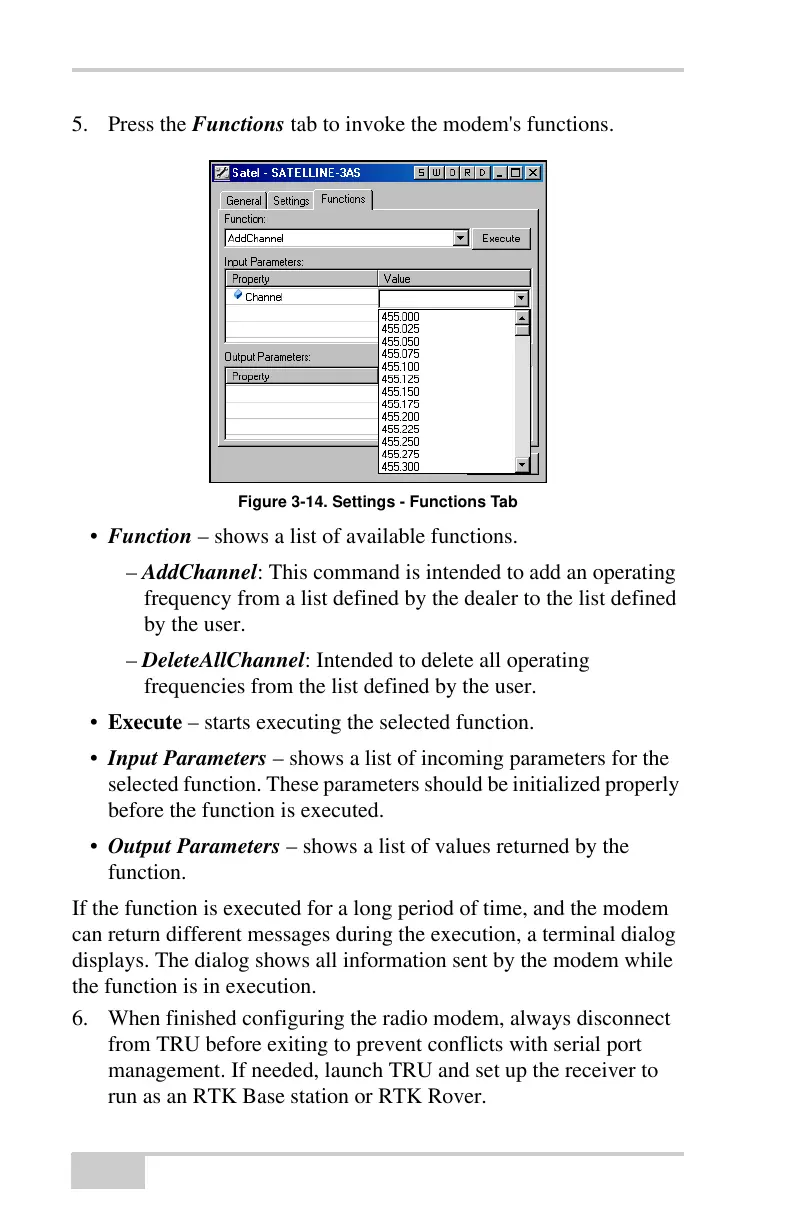

5. Press the Functions tab to invoke the modem's functions.
Figure 3-14. Settings - Functions Tab
• Function – shows a list of available functions.
– AddChannel: This command is intended to add an operating
frequency from a list defined by the dealer to the list defined
by the user.
– DeleteAllChannel: Intended to delete all operating
frequencies from the list defined by the user.
• Execute – starts executing the selected function.
• Input Parameters – shows a list of incoming parameters for the
selected function. These parameters should be initialized properly
before the function is executed.
• Output Parameters – shows a list of values returned by the
function.
If the function is executed for a long period of time, and the modem
can return different messages during the execution, a terminal dialog
displays. The dialog shows all information sent by the modem while
the function is in execution.
6. When finished configuring the radio modem, always disconnect
from TRU before exiting to prevent conflicts with serial port
management. If needed, launch TRU and set up the receiver to
run as an RTK Base station or RTK Rover.
