Tracker and SAS Placement
Topcon Paver System Five Operator’s Manual
6-4
The L-Bar can also be mounted to a bracket on the screed
extension (Figure 6-3). This would work well in applications
where the reference will not be a constant width and requires
the extension to be moved in and out. Mounting to the
extension will make it easier to keep the tracker over the
reference.

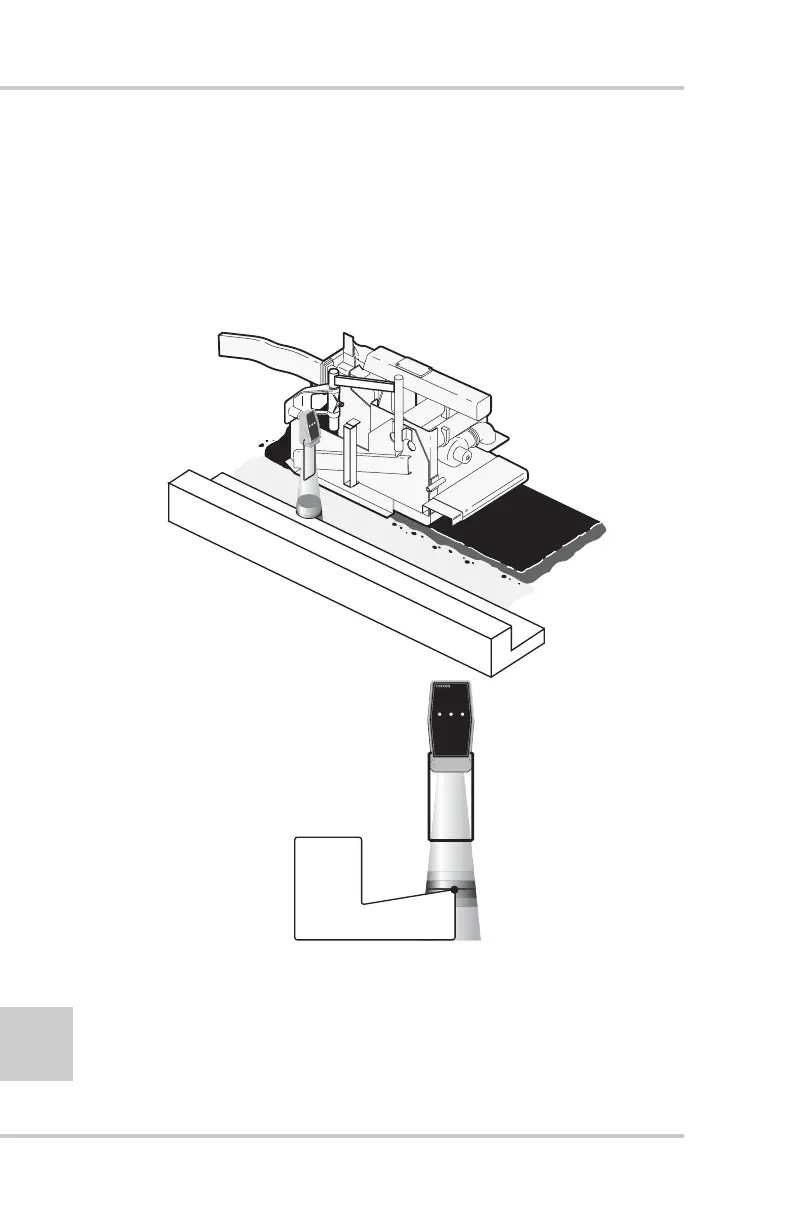

Figure 6-3. Position of L-Bar with Tracker on Bracket
