5. Lower each of the Tracker hangers on the SAS and mount a
Sonic Trackers using the L-handle bolt (Figure 6-19). An extra
washer may need to be added so the L-handle does not block
the cable connection.
Figure 6-19. Mounting Sonic Trackers to SAS

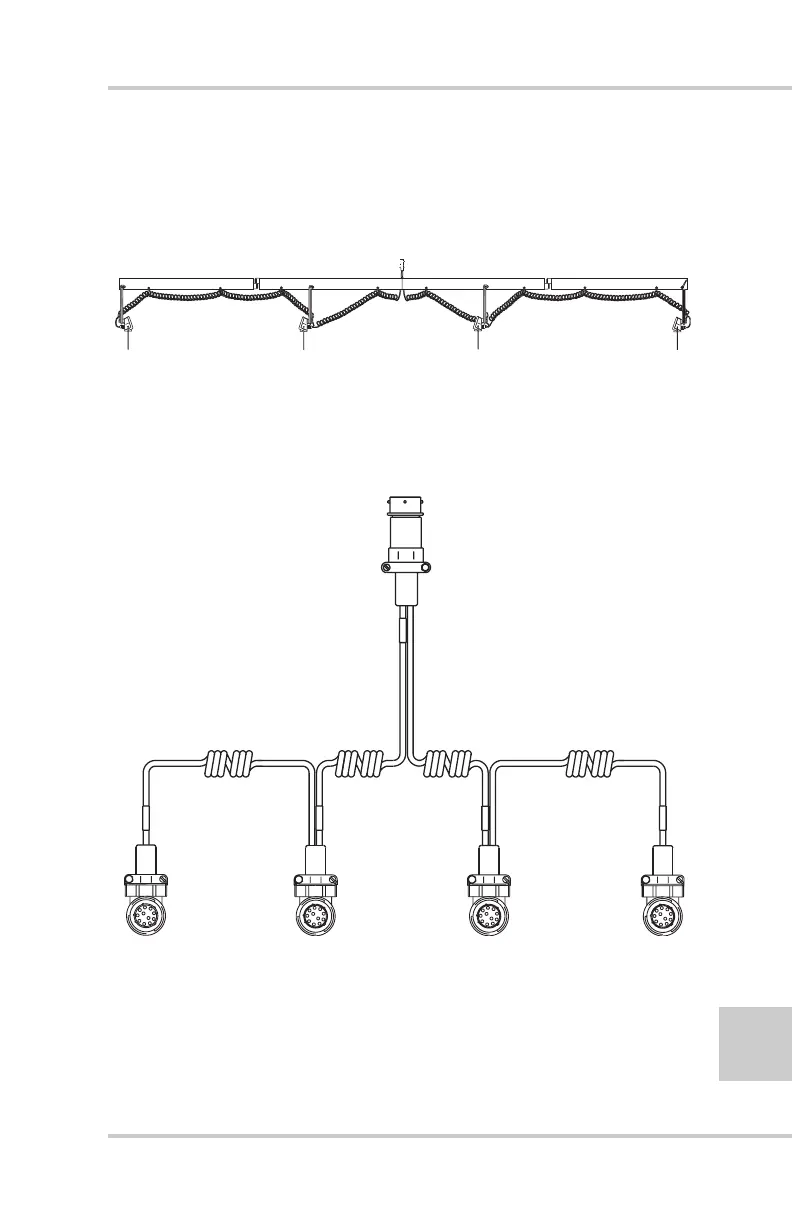

6. Connect the SAS coil cable to each tracker (Figure 6-20). Make
sure to loop the coil cable through the U-hangers to keep it
from getting damaged.
Figure 6-20. SAS Cable Connectors to Sonic Trackers
7. Attach temperature bails to each tracker and begin paving.
