Tracker and SAS Placement
Topcon Paver System Five Operator’s Manual
6-20
To determine where to position the SAS on the paver, start by
measuring the length of the tow arm. Divide the total length by
three. This will give you the placement of the balance point of the
SAS on your machine (Figure 6-25).

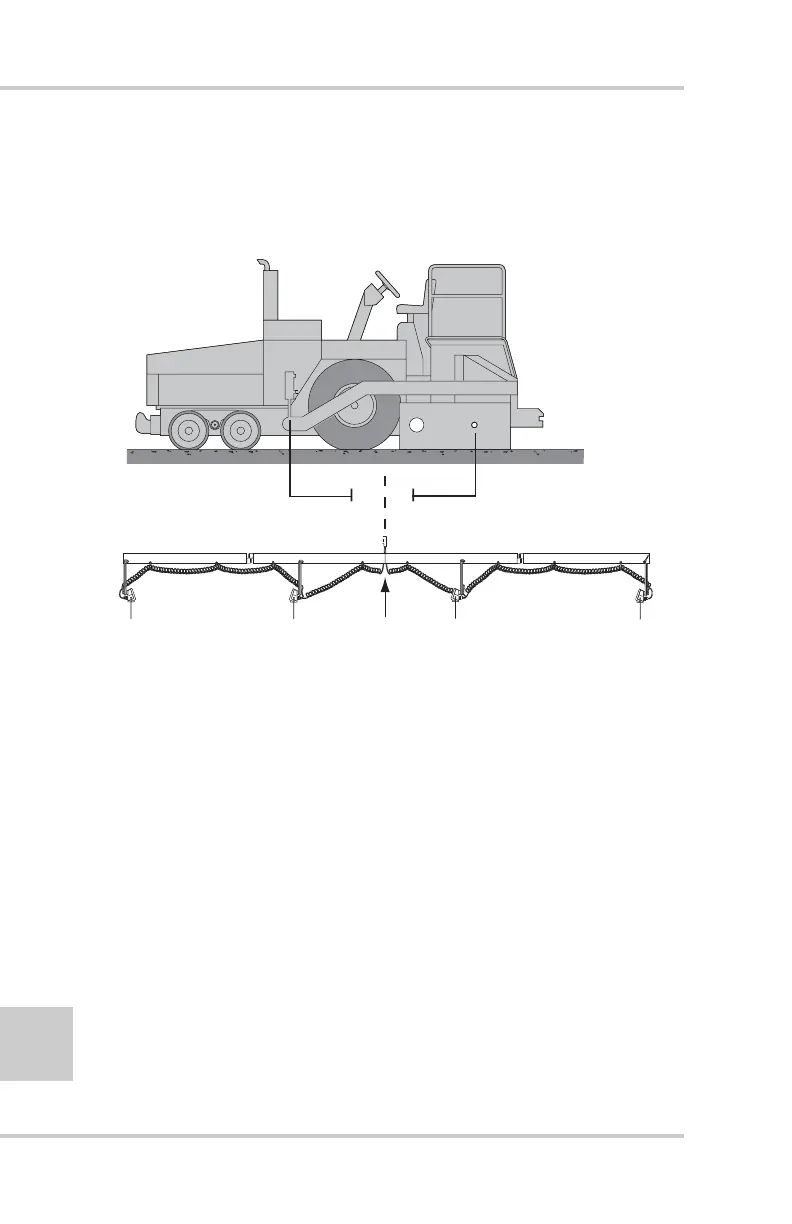

Figure 6-25. Placement of SAS
