Paving City Streets with Cross Slope
P/N 7010-0341 www.topconpositioning.com
7-5
When System Five is used to pave a true 2.0% slope, the crown of
the street will not be at the centerline (Figure 7-7).

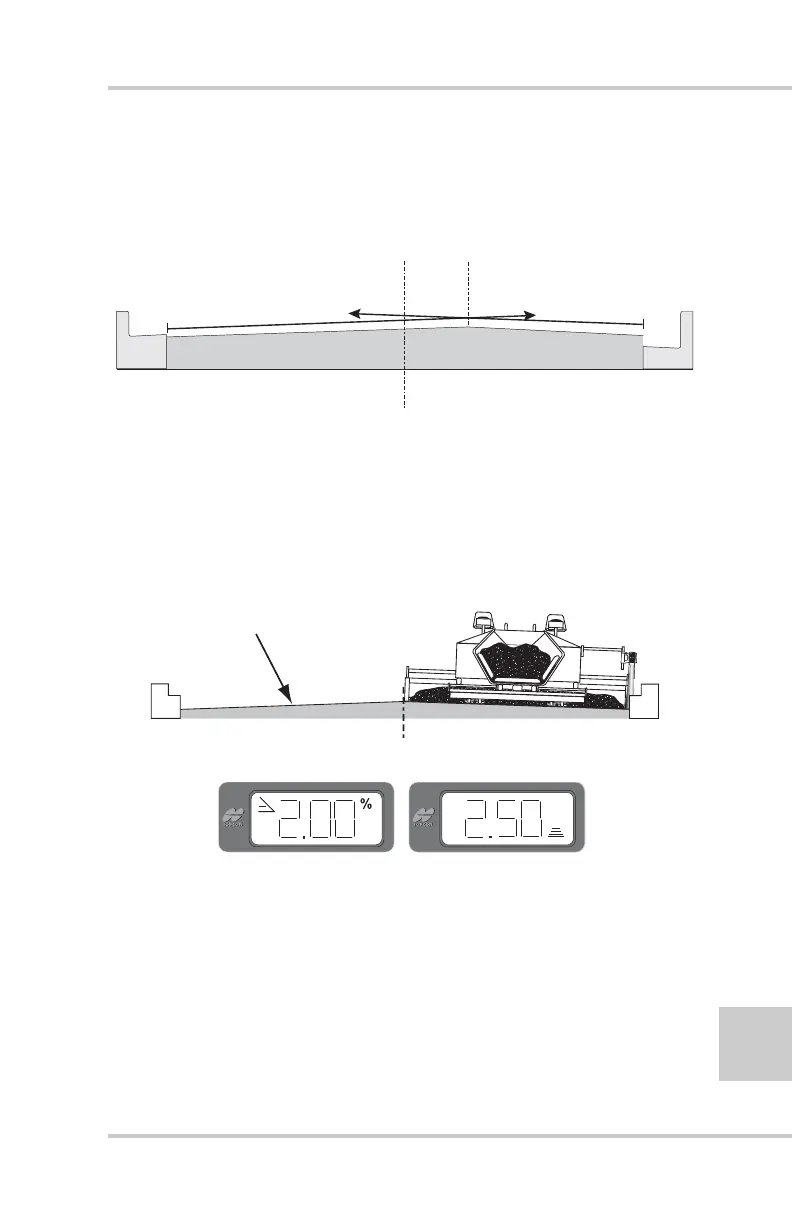

Figure 7-7. Curb with Same Slope
To pave from uneven curbs using slope control, choose the side of
the road with the highest curb and position the tracker over the curb.
Set the other side for the desired cross slope and begin paving
(Figure 7-8).
Figure 7-8. Paving Uneven Curbs with Slope Control
2.0%
2.0%
ORIGINAL
CENTERLINE
NEW
CENTERLINE
AT 2.0% GRADE CUT
CENTERLINE
OF ROAD
SUBGRADE
S
o
n
i
c
T
r
a
c
k
e
r
I
I
T
