Maintenance
Topcon Paver System Five Operator’s Manual
8-4
The Transducer Replacement Kit includes an “O”-Ring and
four replacement screws; however, use the original screws and
keep the four supplied in the kit for replacements in the event
one or more are lost.

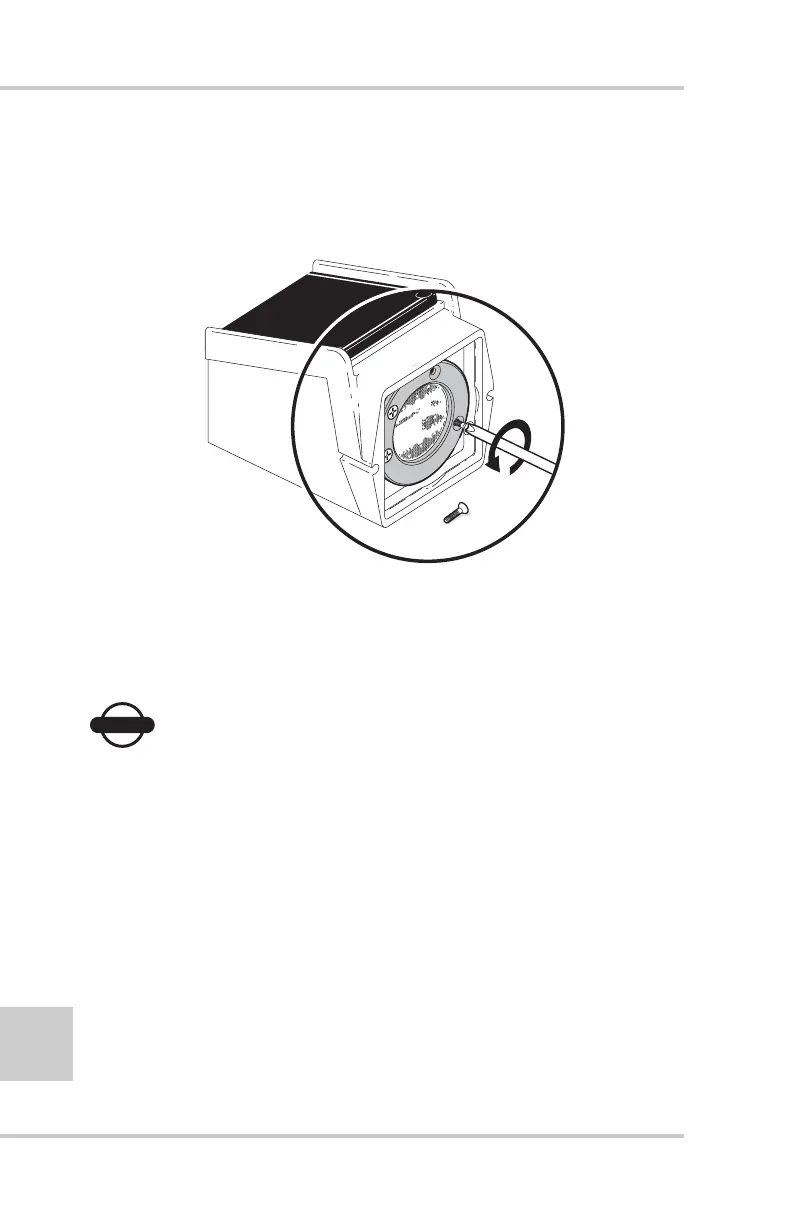

Figure 8-2. Remove Screws, Retaining Ring, and “O”-ring
3. Gently pull out the transducer and use a SMALL pair of dikes
to gently cut the Ty-Wrap, then remove the small wire
connectors from their tabs (Figure 8-3 on page 8-5).
NOTICE
NOTICE
When cutting the Ty-Wrap, be careful not to cut
or damage the wires.
