Topcon Paver System 5 User Manual

Sonic Tracker II Transducer Replacement
P/N 7010-0341 www.topconpositioning.com
8-5

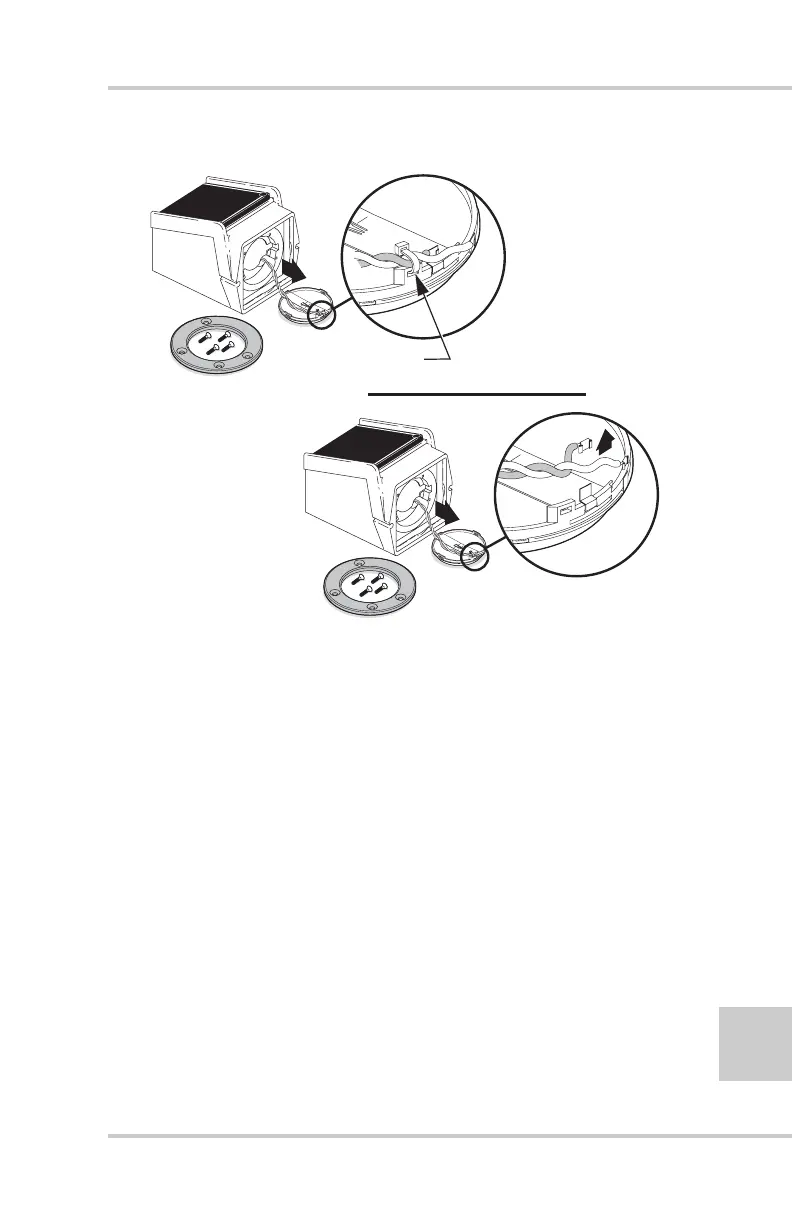

Figure 8-3. Remove Transducer, Cut Ty-Wrap, and Remove Connectors
4. Place the wire connectors of the new transducer firmly on their
tabs; the gray wire connector is placed on the elevated tab.
Place the Ty-Wrap in the slot next to the elevated (gray wire)
tab, tighten and trim. DO NOT pinch the wires (Figure 8-4 on
page 8-6).
CUT
TY-WRAP
CAREFULLY
REMOVE WIRE
CONNECTORS
