Maintenance
Topcon Paver System Five Operator’s Manual
8-6

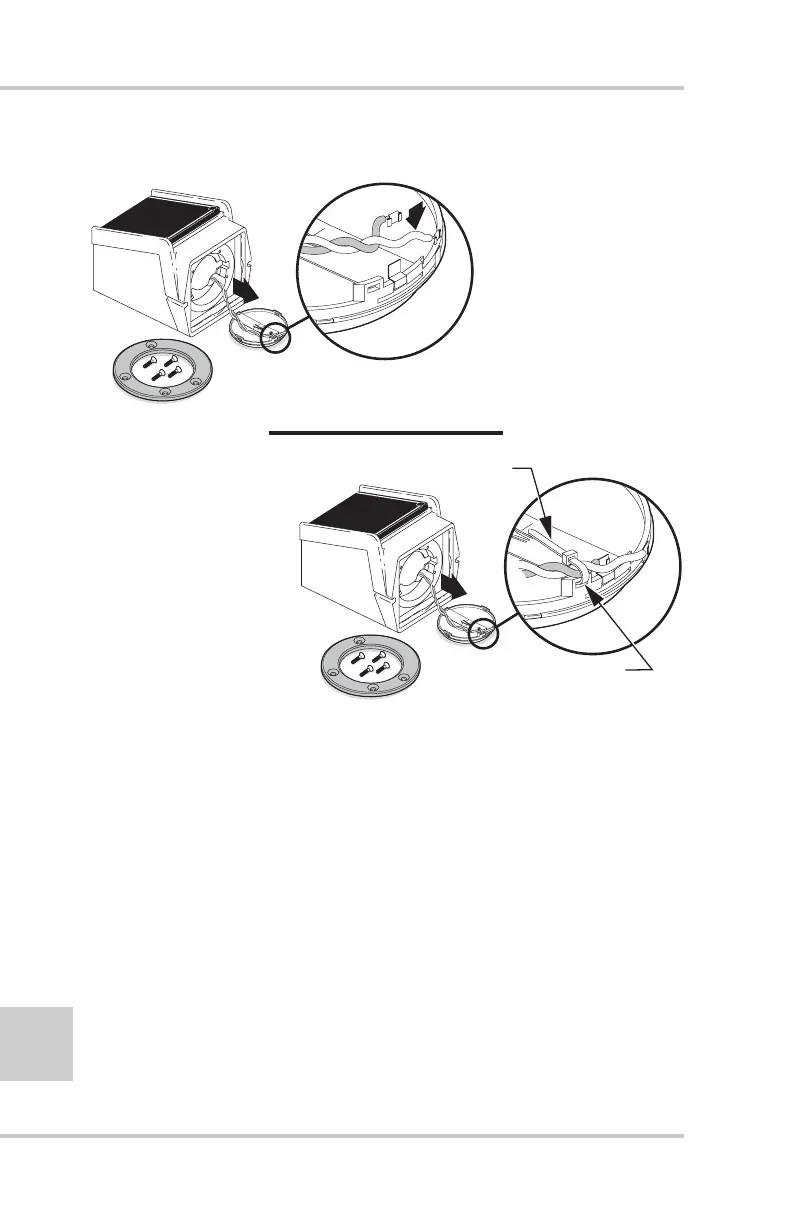

Figure 8-4. Replace Transducer, Connectors, and Ty-Wrap
5. “Feed” the wires back up into the Sonic Tracker II and seat the
transducer into place (the two wire tabs have to sit down into
the extra deep area of the recess). Place the new “O”-ring
around the transducer and seat firmly between the transducer
and the Sonic Tracker II transducer recess (Figure 8-5 on
page 8-7).
CAREFULLY PLACE
WIRE CONNECTORS
ON TABS
PLACE NEW TY-WRAP
AROUND WIRES
AND TIGHTEN
TRIM EXCESS
TY-WRAP
