Operation & Menu Settings
Topcon Paver System Five Operator’s Manual
4-22

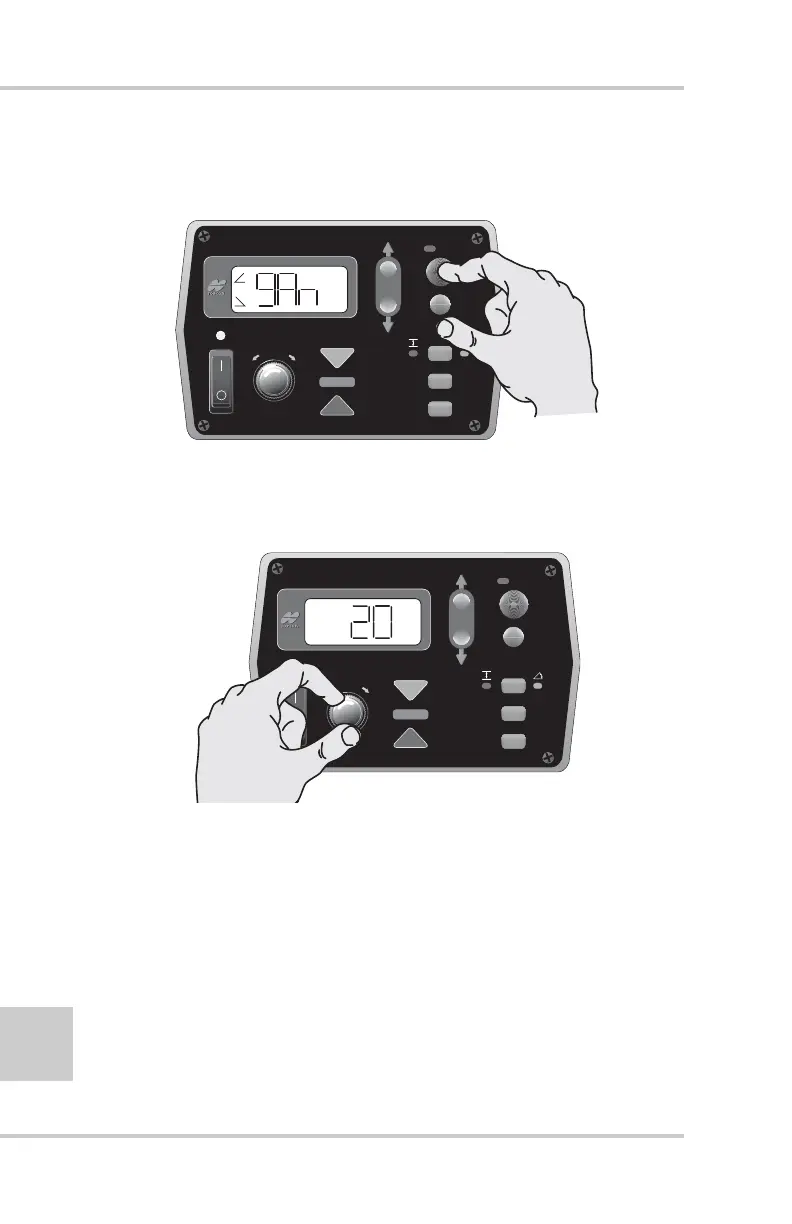

1. From the Performance menu, press the Auto button to
select Gain (Slope Control) (Figure 4-27).
Figure 4-27. Select Gain (Slope Control)
2. Turn the Grade Adjustment Knob to select the desired
value, typically 20% to 25% (Figure 4-28).
Figure 4-28. Selecting the Gain Value
3. Press the Auto button again to store value.
4. Rotate the Grade Adjustment Knob to access another item
in the Performance Menu, or press the Set/Menu button to
exit.
FiveSystem
AU
TO
S
UR
VEY
SET
(M
E
NU
)
+
-
FiveSystem
AU
TO
S
UR
VEY
SET
(M
E
NU
)
