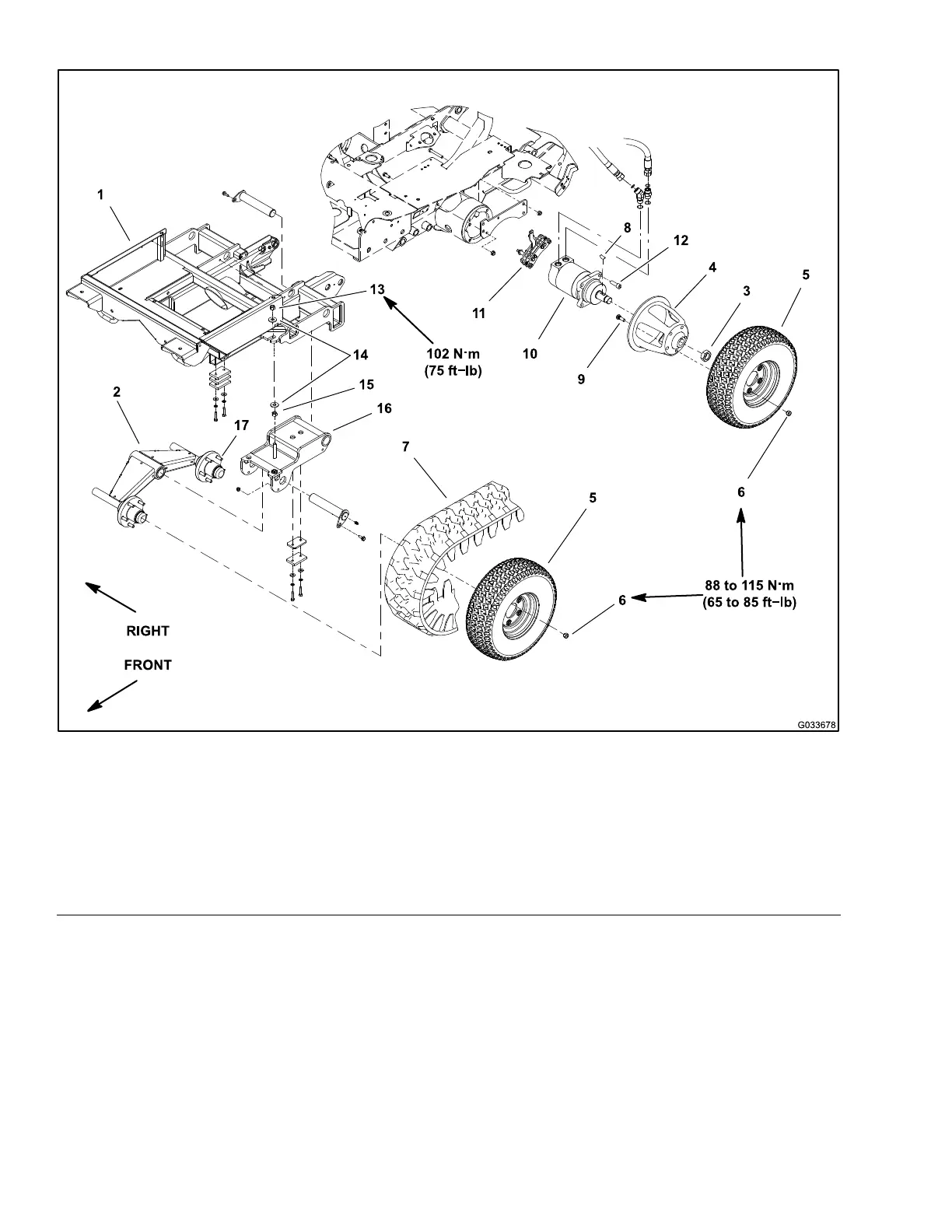

PolarTracWheels

g033678

Figure185

1.Frontframe

7.Drivetrack13.Locknut

2.Bogieassembly

8.Woodruffkey

14.Flatwasher

3.Locknut

9.Wheelstud(5eachperhub)

15.Hexnut

4.Rearwheelhub(left)10.Rearwheelmotor(left)16.Bogiepivotassembly(left)

5.Wheelassembly(6each)11.Parkingbrake(left)17.Wheelstud(5eachperhub)

6.Wheellugnut(5eachperwheel)12.Screw(4eachpermotor)

RemovingthePolarTracWheels

Note:RefertothePolarTracOperator'sManualforadditionalinformation

regardingthedrivetrackandwheelremoval.

1.Parkthemachineonalevelsurface,lowertheimplement,shutoffthe

engine,andremovethekeyfromthekeyswitch.

Note:WhenremovingthewheelsfromaPolarTracequippedmachine,

removethecenterwheelrsttoallowtrackclearanceforthefrontorrear

wheels.

Chassis:ServiceandRepairs

Page6–6

Groundsmaster7210

16222SLRevC
