Audio Engine
3
Audio Engine
3
NOTES
NOTES
Cutoff & Resonance
The cutoff point is where the low pass / high pass lter starts to attenuate. Resonance can be
applied to emphasis the frequencies at the cutoff point giving the sound more buzz or grit.
Noise & Waves Modulation
The device has internal modulation features. Noise will randomly change the frequency bands
amplitude. The rate of the noise modulation is available on page 2 parameters. Also a sine
wave shape can be applied like an LFO to the frequency bands. The rate of the wave cycle is
also adjustable in page 2 of the parameters.
Post / Pre Effects
Sets the conguration of the lter by controlling when the ltering is applied. Before or after the
resonating bands controlled with Decay.
Cutoff
Cutoff Cutoff
Resonance
Noise Wave
Scale & Detune
Slope
LP BP HP
Tone
Quantizes the frequency
bands and detunes the pitch

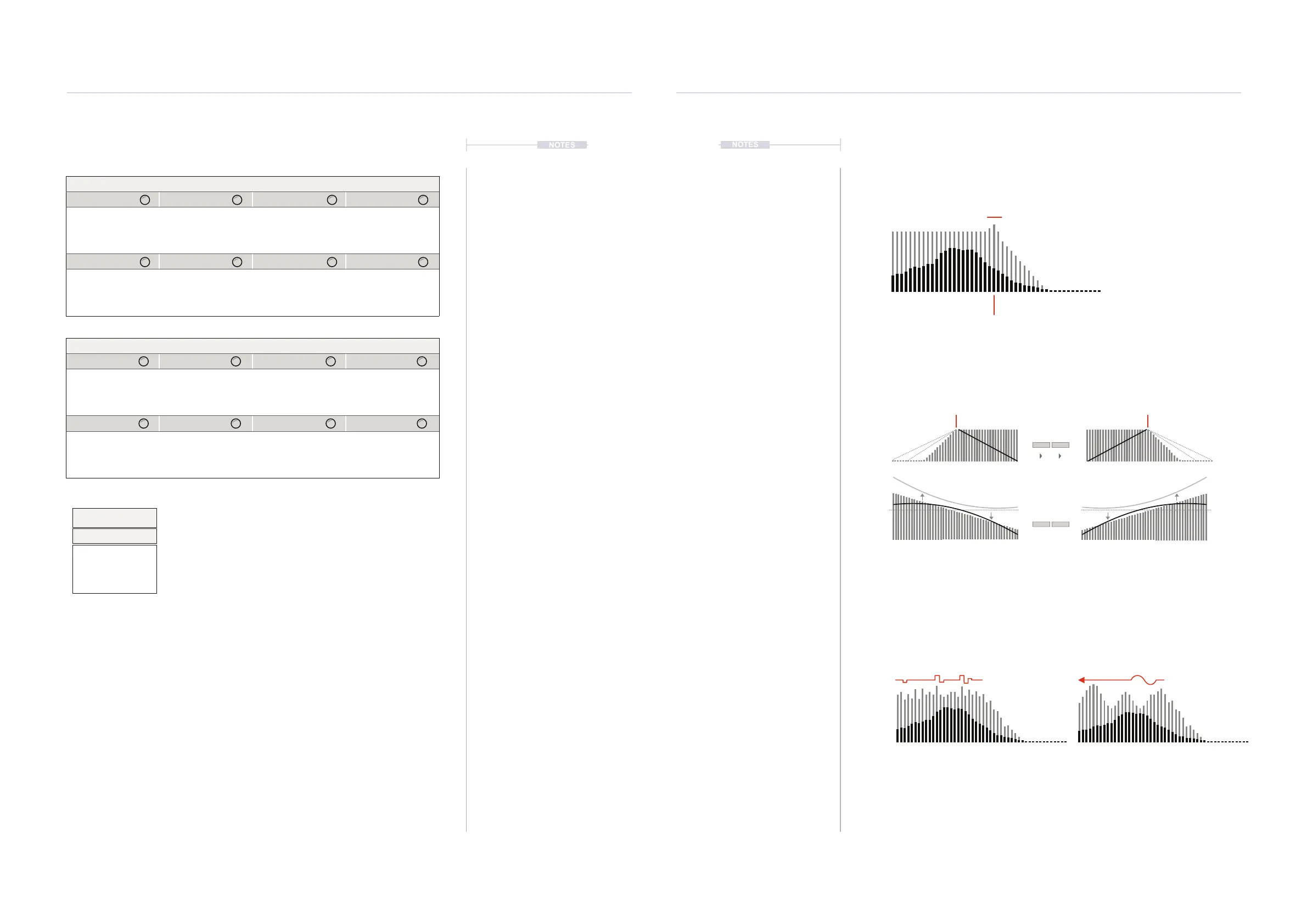

S-4 Ring 48 Band Filter Bank
Press [MATERIAL] to select and cycle pages
Parameter Knobs Page 1
Cutoff Resonance Decay Pitch
Cutoff frequency of
the lter bank’s lter.
Resonance amount of
the lter bank’s lter.
Resonance time for
the lter bands
Pitch adjustments -24
to +24 Semitones.
Slope Tone Scale Wet
Adjusts the frequency
response by
controlling the shape.
Adjustment of the
frequency response to
affect the tone.
Quantize individual
bands of the lter to
the specied scale.
Controls the dry/wet
of the device.
Parameter Knobs Page 2
Waves Noise Tilt Detune
Modulates the
frequency bands with
a wave cycle.
Randomize the
amplitude of each of
the lter bands.
Tilt adjustment of the
frequency response to
affect each lter band.
Detune the individual
bands of the lter
bank.
Waves R.  Noise R. 
Waves Rate.
Modulation speed of
the wave function set
in periodic intervals.
Noise Rate. Speed of
change for applying
noise randomisation set
in periodic intervals.
For full list of Scale and Rate options see the Appendix.
Some parameters tagged

offer a number of ‘Mode Select’
options from a pop-up list. This can be accessed for some
parameters by pressing the knob. Press and turn to select an
item from the presented list.
Rate
Rate Mode
Straight
Dotted
Triplet
Free
