Toshiba Qosmio G20 - System Block Diagram

1 Hardware Overview 1.2 System Block Diagram
1.2 System Block Diagram

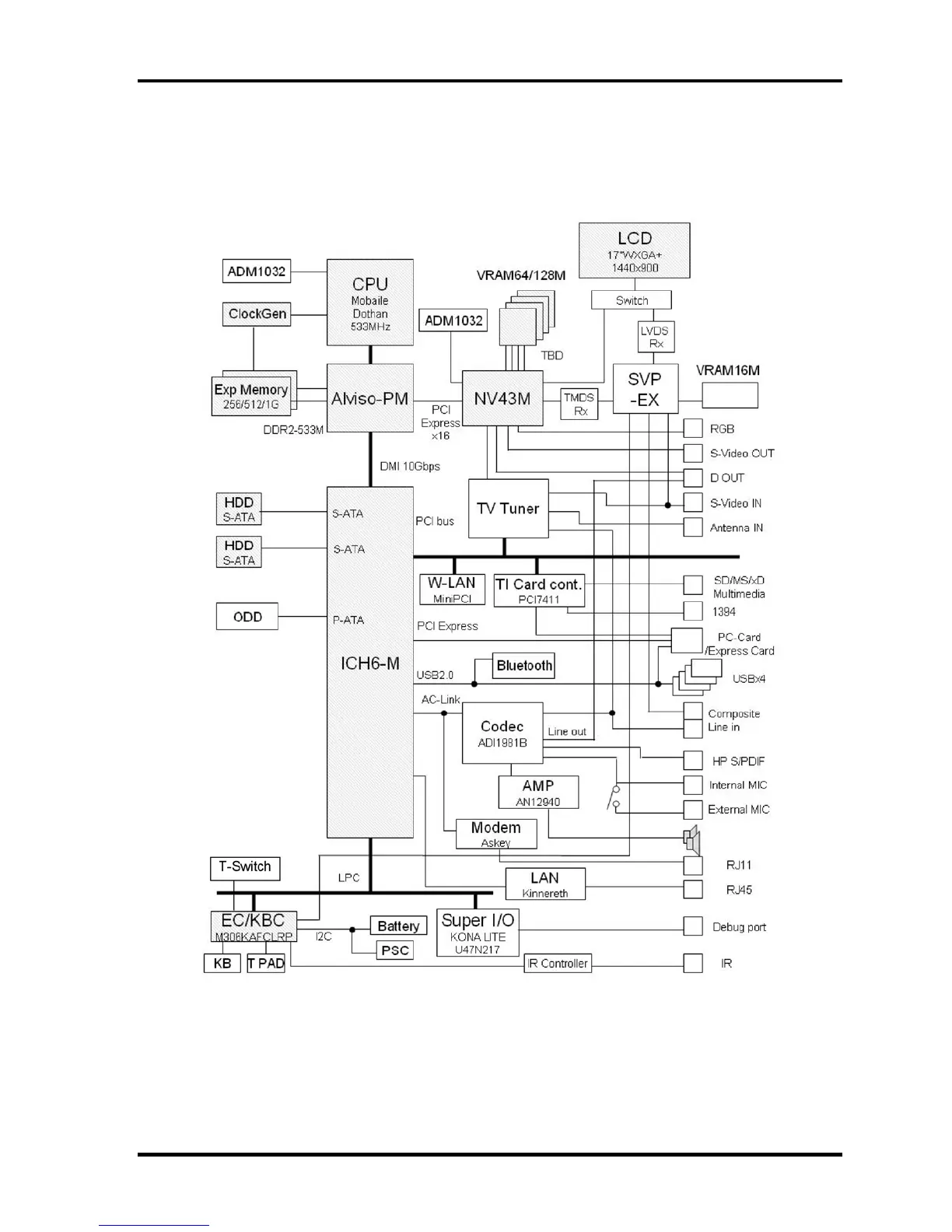

Figure 1-2 shows the system block diagram.
Figure 1-2 System block diagram
