4.22 VGA fan & VGA fin 4 Replacement Procedures
4.22 VGA fan & VGA fin
Removing the VGA fan & VGA fin
The following describes the procedure for removing the VGA fan & VGA fin (See Figure 4-
35).
1. Peeling off the glass tape, disconnect the VGA fan cable from the connector CN8780
on the system board.
2. Remove the following screws securing the VGA fan and remove the VGA fan.
 M2.5x4.0B FLAT BIND screw x2
3. Remove the following screws securing the VGA fin and remove the VGA fin.
 M2.0x3.0S S-THIN FLAT BIND screw x2
Glass tape
M2.5x4.0B FLAT BIND M2.5x4.0B FLAT BIND
VGA fan
M2.0x3.0S S-THIN FLAT BIND
VGA fin
CN8780

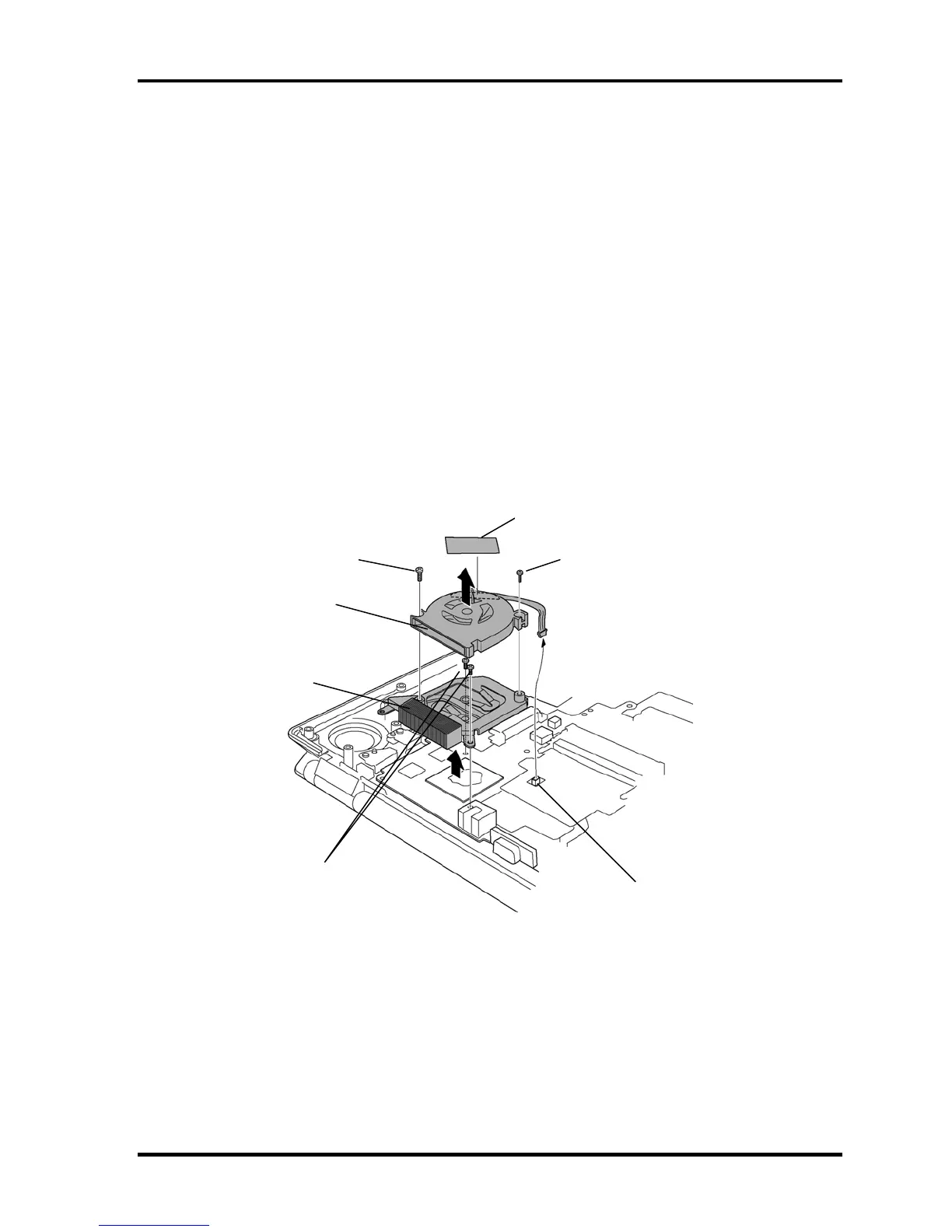

Figure 4-35 Removing the VGA fin
4-56 [CONFIDENTIAL] QOSMIO G20 Maintenance Manual (960-511)
