4 Replacement Procedures 4.34 LCD harness
4.34 LCD harness
Removing the LCD harness
The following describes the procedure for removing LCD harness (See Figure 4-50 to 4-52).
1. Remove the following screw securing the LCD harness holder (cover assembly side)
and remove the LCD harness holder from the cover assembly.
 M2.5x4.0B FLAT BIND screw x1
2. Remove the following screw securing the hinge cap (L) and remove the hinge rear
cap (L) from the display assembly.
 M2.0x4.0B FLAT BIND screw x1
M2.5x4.0B FLAT BIND
LCD harness holder
M2.5x4.0B FLAT BIND
Hinge rear cap (L)

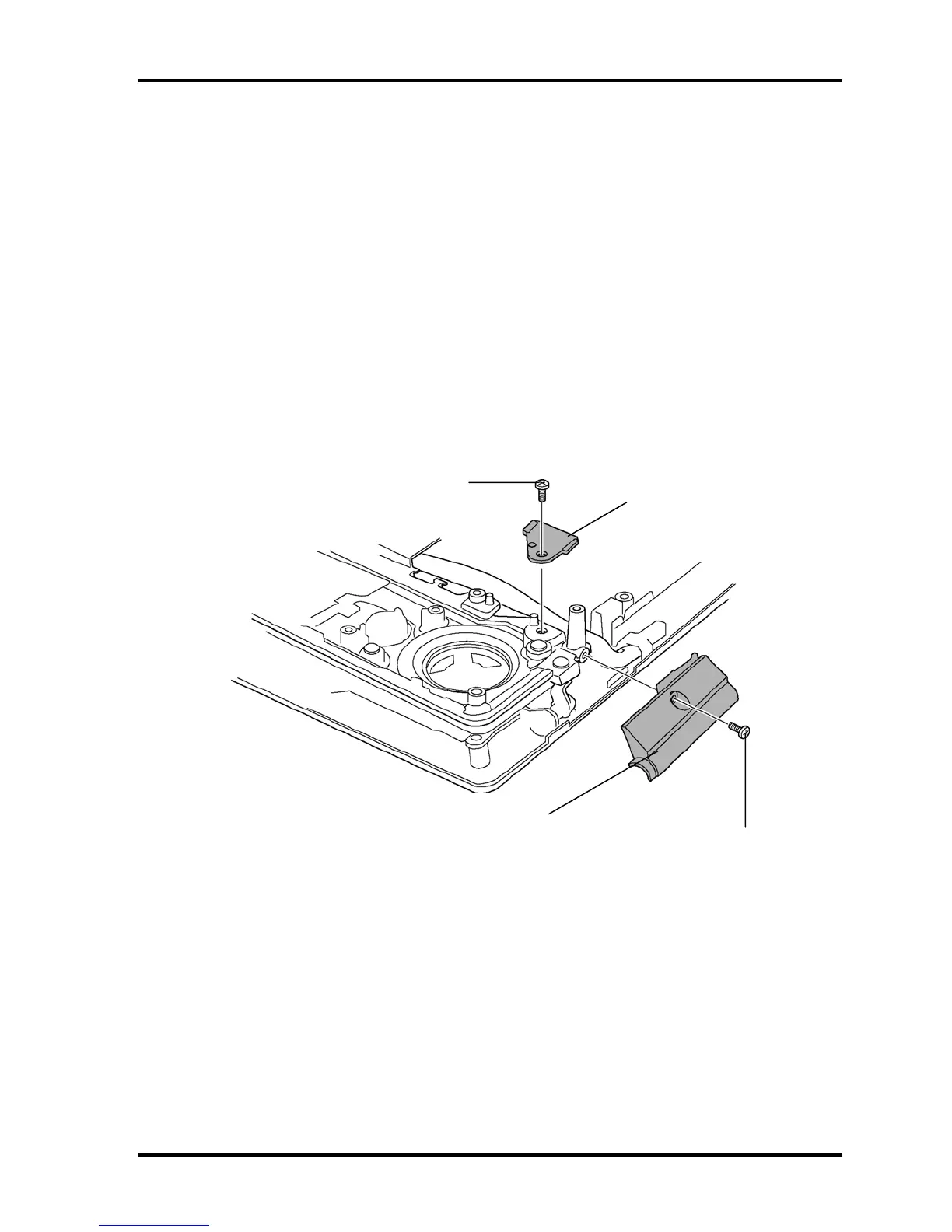

Figure 4-50 Removing the hinge rear cap (L)
QOSMIO G20 Maintenance Manual (960-511) [CONFIDENTIAL] 4-79
