4 Replacement Procedures 4.1 Overview
4
4.1 Overview
This chapter describes the procedure for removing and replacing the field replaceable units
(FRUs) in the PC. It may not be necessary to remove all the FRUs in order to replace one.
The chart below provides a guide as to which other FRUs must be removed before a
particular FRU can be removed. The numbers in the chart indicate the relevant section
numbers in this manual.
In all cases when removing an FRU, the battery pack must also be removed. When repairing
an FRU that is the potential cause of a computer fault, use the chart to determine the order in
which FRUs need to be removed.
The tilt stand, if it is installed, can be removed without any other FRUs removed.

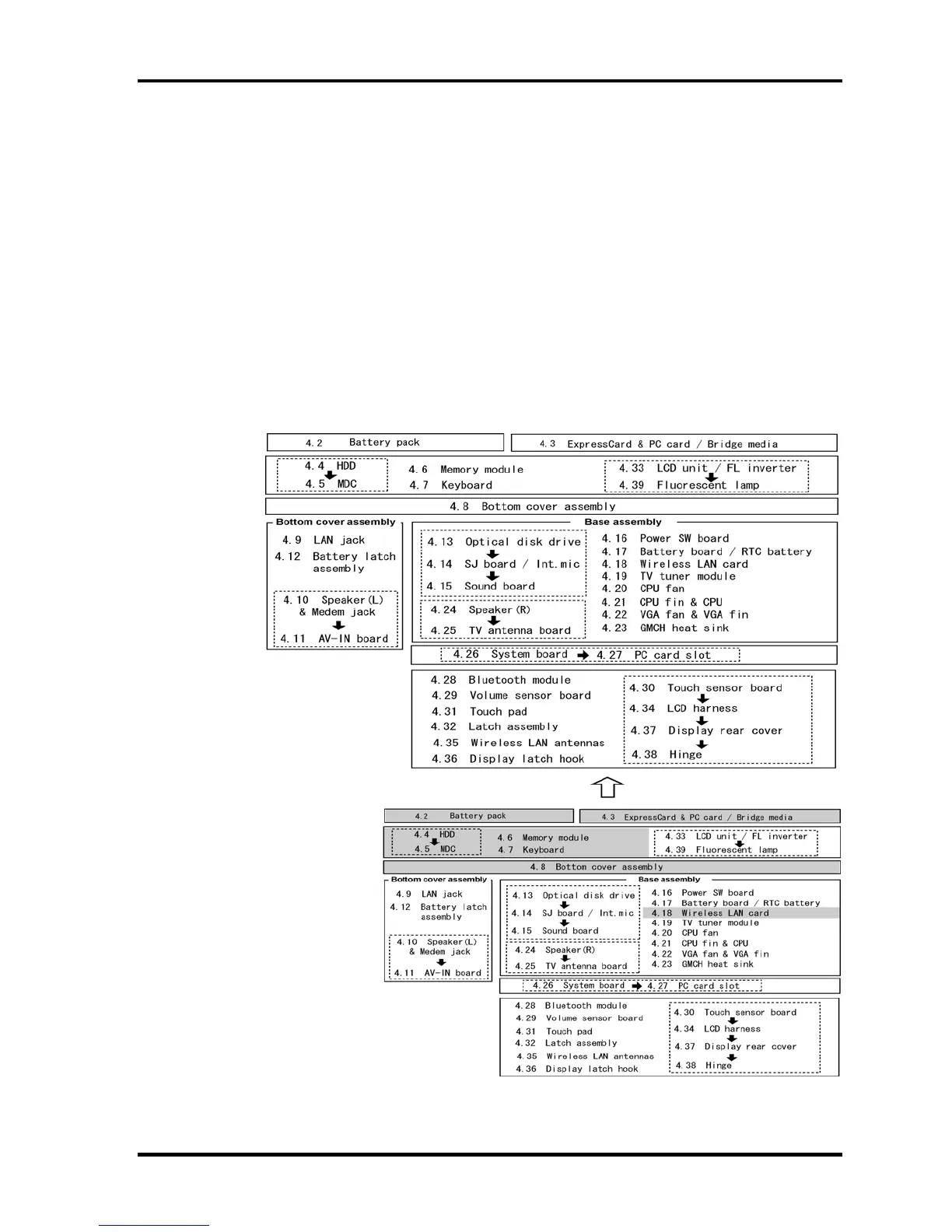

• Chart Notation
The chart shows the case for the
following example:
• Removing a Wireless LAN card
All FRUs down to the “4.2 Battery
pack” to “4.8 Bottom cover assembly”
above a 4.18 Wireless LAN card must
be removed.
QOSMIO G20 Maintenance Manual (960-511) [CONFIDENTIAL] 4-1
