4 Replacement Procedures 4.5 MDC
4.5 MDC
Removing a MDC

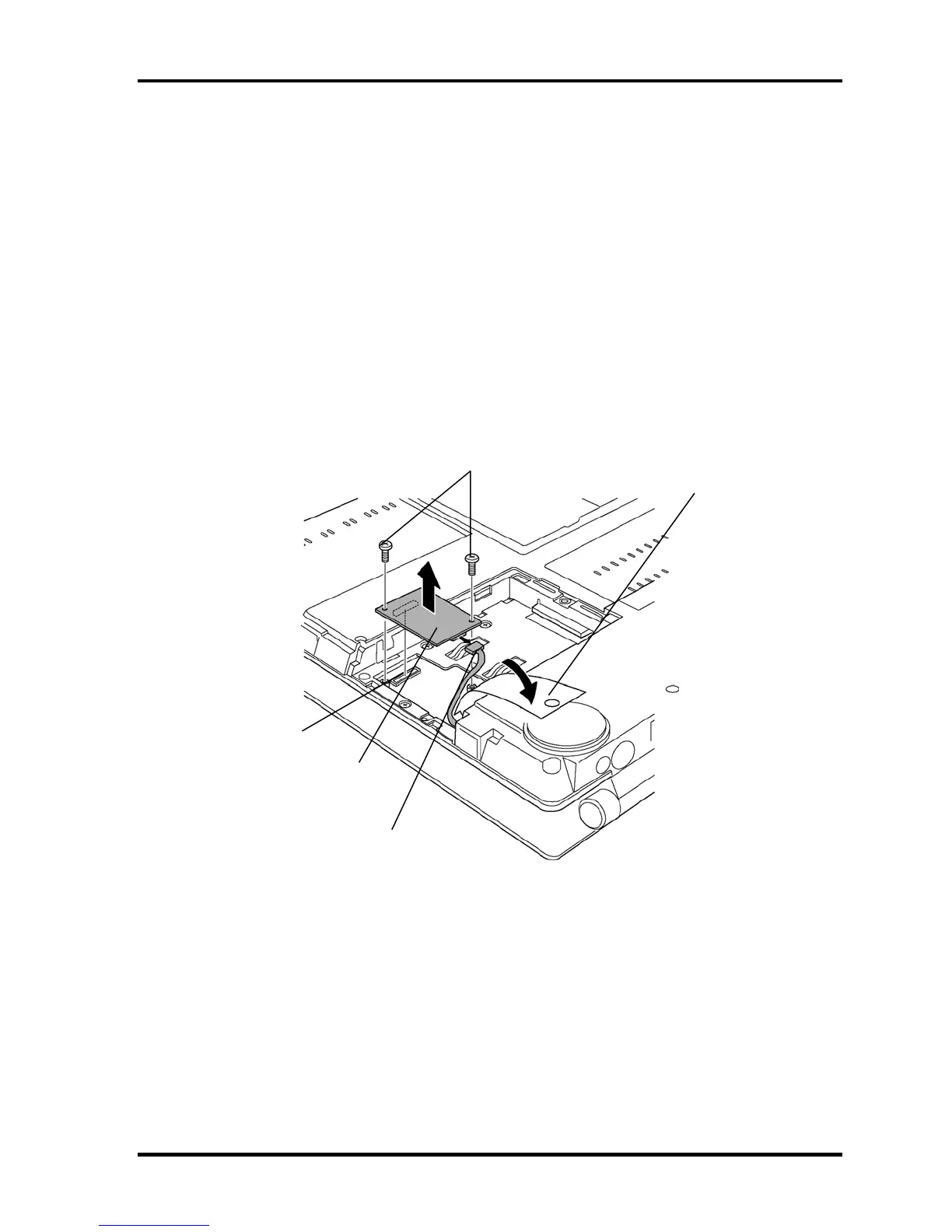

The following describes the procedure for removing a MDC (See Figure 4-7).
1. Turning up the insulator, remove the following screws securing a MDC.
 M2.0x4.0C BIND screw x2
2. Pull a MDC straight up and disconnect the MDC from the connector CN3000 on the
SD board.
3. Disconnect the RJ11 harness from the MDC.
M2.0x4.0C BIND
Insulator
MDC
RJ11 harness
CN3000
Figure 4-7 Removing a MDC
QOSMIO G20 Maintenance Manual (960-511) [CONFIDENTIAL] 4-17
