4 Replacement Procedures 4.14 SJ board / Internal Microphone
4.14.2 Internal Microphone
Removing the Internal microphone
The following describes the procedure for removing the internal microphone (See Figure 4-
24).
1. Remove the following screw securing the internal microphone and remove the
internal microphone assembly.
 M2.5x4.0B FLAT BIND screw x1
2. Pull out the internal microphone from the mic holder.
M2.5x4.0B FLAT BIND
Internal microphone
Mic holder

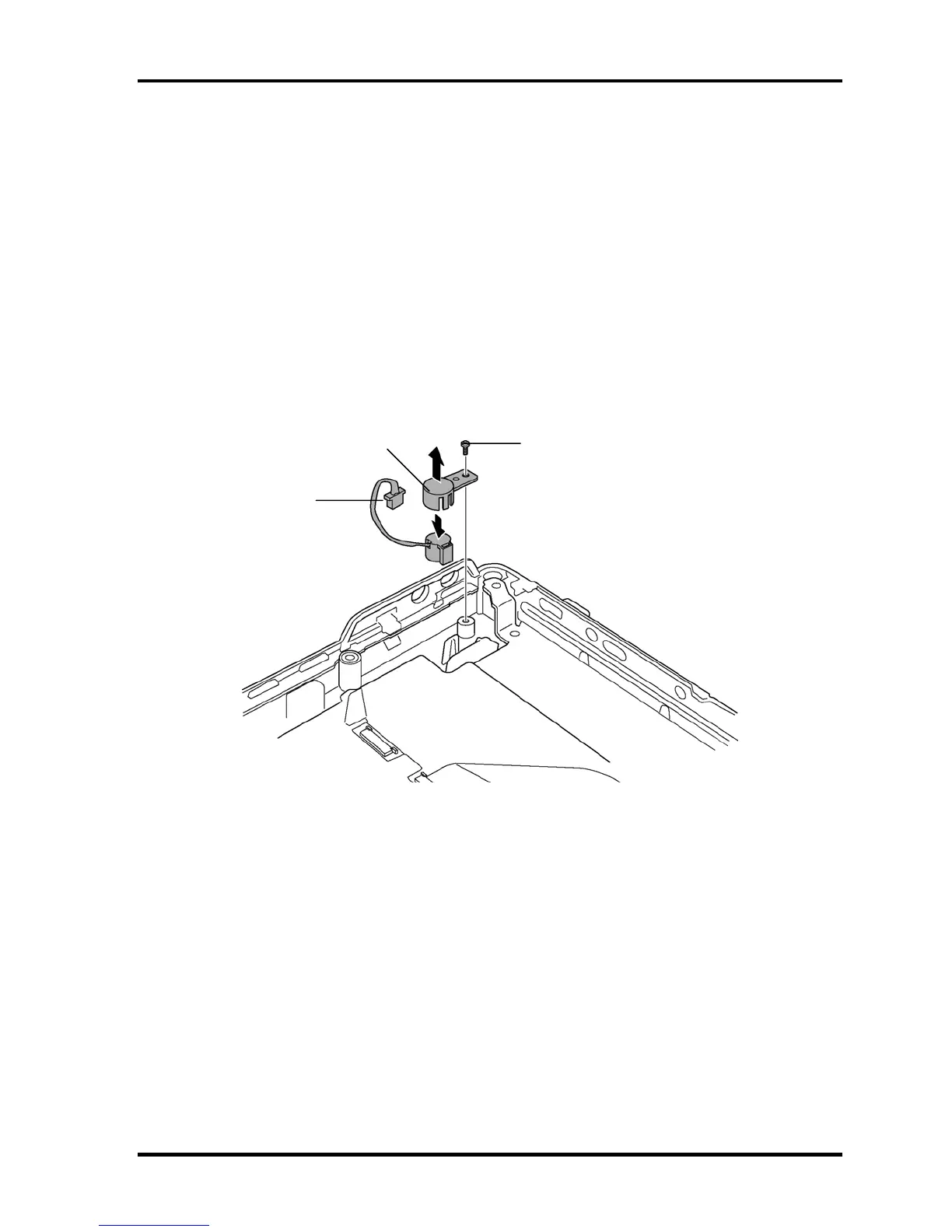

Figure 4-24 Removing the internal microphone
Installing the Internal microphone
The following describes the procedure for installing the internal microphone (See Figure 4-
24).
1. Install the internal microphone to the mic holder.
2. Install the internal microphone assembly and secure it with the following screw.
 M2.5x4.0B FLAT BIND screw x1
QOSMIO G20 Maintenance Manual (960-511) [CONFIDENTIAL] 4-41
