4 Replacement Procedures 4.9 LAN jack
4
4.9 LAN jack
Removing the LAN jack
The following describes the procedure for removing the LAN jack (See Figure 4-15).
1. Pull up and remove the LAN jack from the bottom cover assembly.
LAN jack

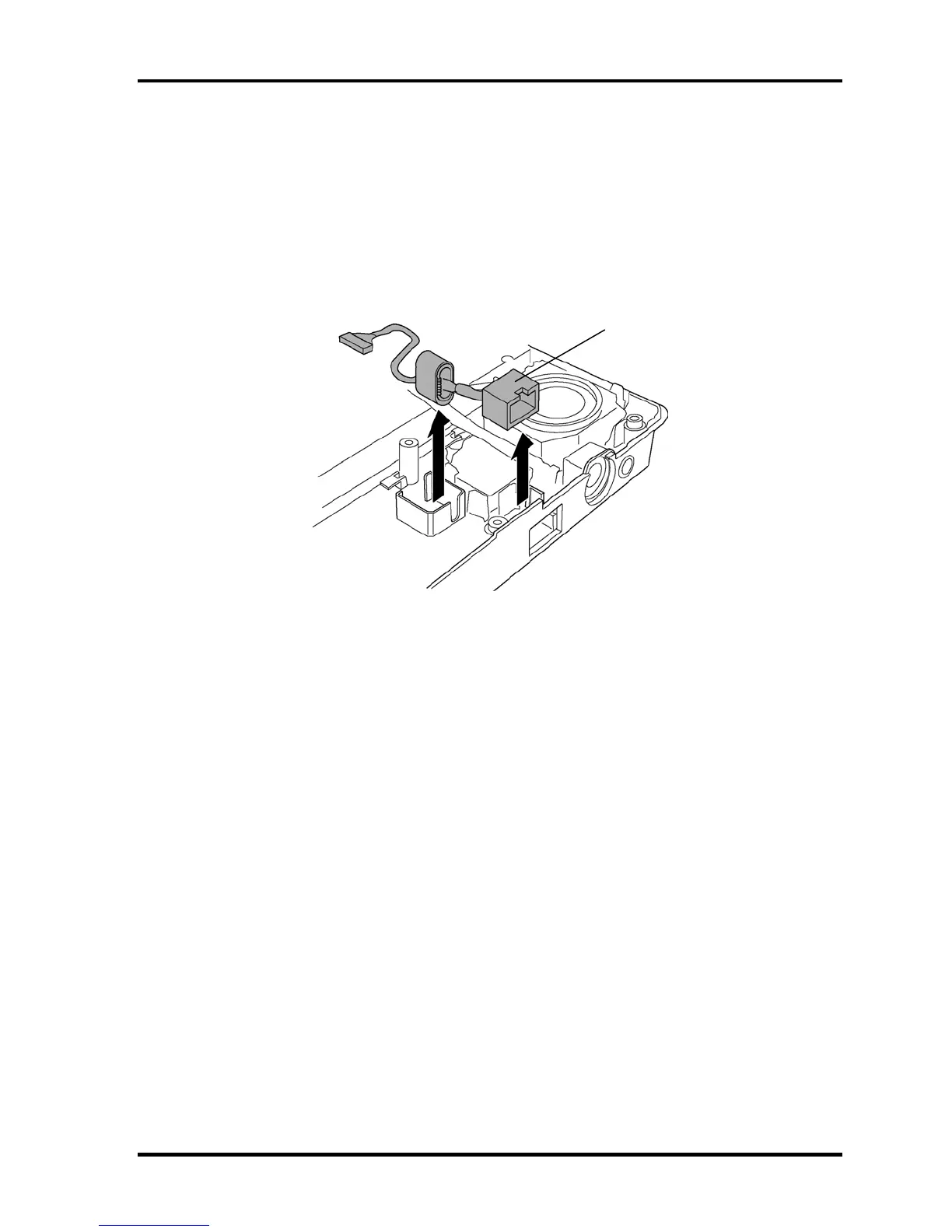

Figure 4-15 Removing the LAN jack
Installing the LAN jack
The following describes the procedure for installing the LAN jack (See Figure 4-15).
1. Install the LAN jack by sliding it to the slot of bottom cover assembly.
QOSMIO G20 Maintenance Manual (960-511) [CONFIDENTIAL] 4-29
