4.16 Power SW board 4 Replacement Procedures
4.16 Power SW board
Removing the Power SW board
The following describes the procedure for removing the Power SW board (See Figure 4-26).
1. Remove the following screw securing the power SW board and pull up the Power
SW board from the cover assembly.
 M2.5x4.0B FLAT BIND screw x1
2. Disconnect the Power SW harness from the connector CN9622 on the Power SW
board.
M2.5x4.0B FLAT BIND
Power SW board
Power SW harness
CN9622

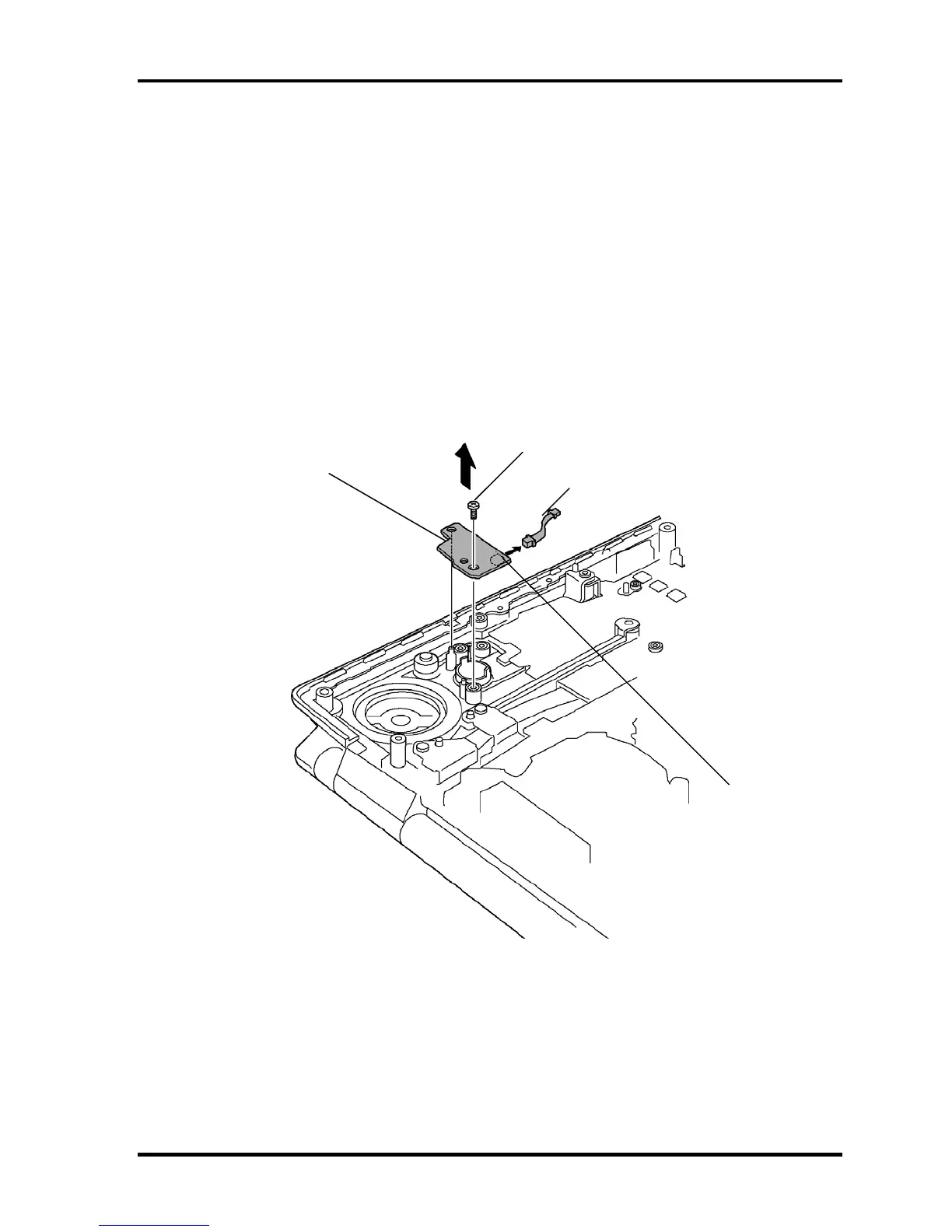

Figure 4-26 Removing the Power SW board
4-44 [CONFIDENTIAL] QOSMIO G20 Maintenance Manual (960-511)
