4 Replacement Procedures 4.27 PC card slot
4.27 PC card slot
Removing the PC card slot
The following describes the procedure for removing the PC card slot (See Figure 4-40).
1. Remove the following screws securing the PC card slot.
 M2.0x3.0B S-THIN FLAT BIND screw x2
 M2.0x8.0B BIND screw x2
2. Pull up the PC card slot straight and remove it from the connector CN2110 on the
system board.
PC card slot
CN2110
M2.0x8.0B BIND
M2.0x3.0B S-THIN FLAT BIND

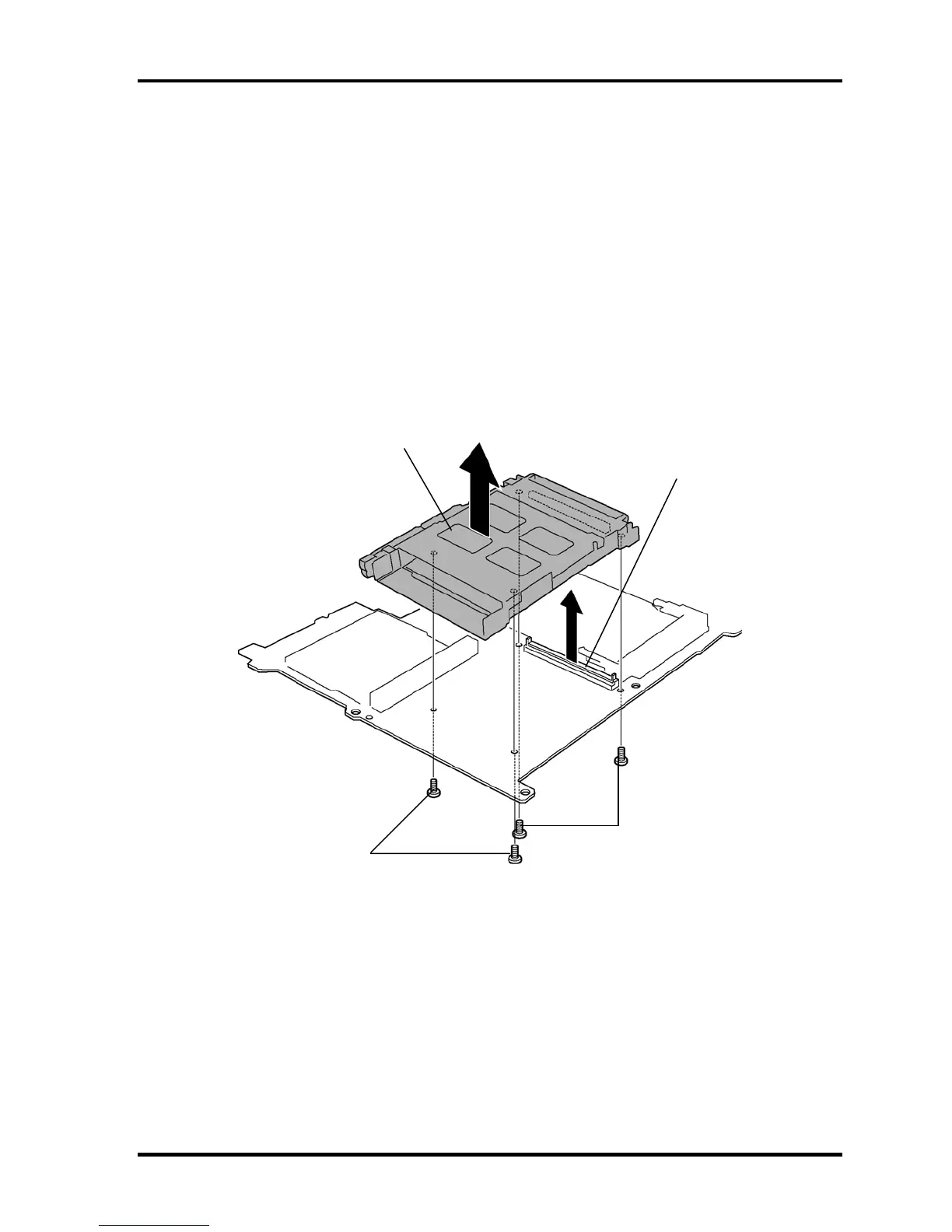

Figure 4-40 Removing the PC card slot
QOSMIO G20 Maintenance Manual (960-511) [CONFIDENTIAL] 4-63
