4.31 Touch pad 4 Replacement Procedures
4.31 Touch pad
Removing the touch pad
The following describes the procedure for removing the touch pad (See Figure 4-44).
1. Peel off the glass tape and disconnect the touch pad flat cable from the connector on
the touch pad.
2. Remove the following screws securing the touch pad plate.
 M2.0x4.0C BIND screw x3
3. Turning up the insulator, remove the touch pad plate.
4. Peel off and remove the touch pad from the cover assembly.
Touch pad flat cable
Insulator
Glass tape
Touch pad plate
M2.0x4.0C BIND
Touch pad
M2.0x4.0C BIND

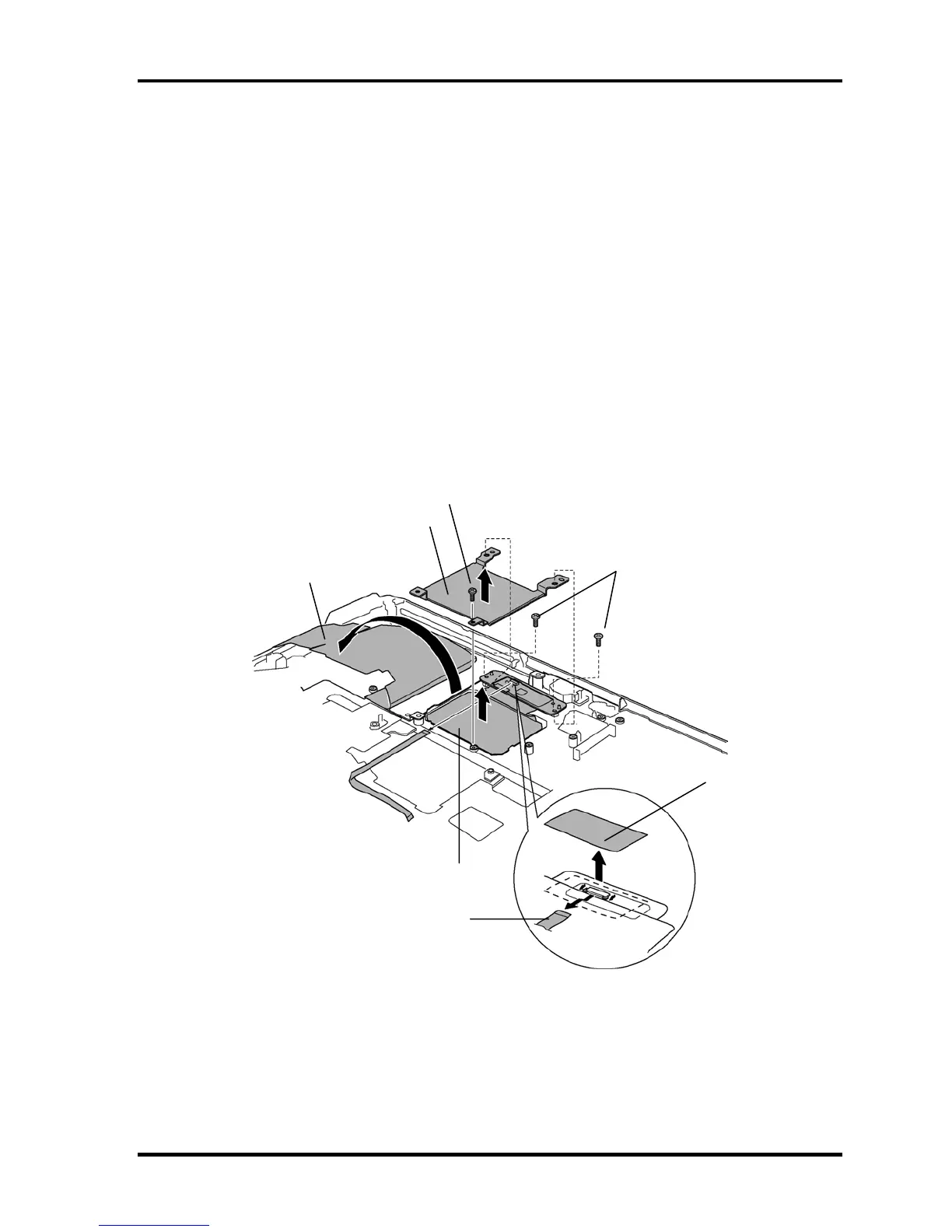

Figure 4-44 Removing the touch pad
4-70 [CONFIDENTIAL] QOSMIO G20 Maintenance Manual (960-511)
