4 Replacement Procedures 4.24 Speaker (R)
4.24 Speaker (R)
Removing the speaker (R)
The following describes the procedure for removing the speaker (R) (See Figure 4-37).
1. Pull out the DC-IN jack from the guide of cover assembly.
2. Draw the speaker (R) from the slot of cover assembly.
3. Disconnect the speaker (R) cable from the connector CN6003 on the system board.
Speaker (R)
Speaker (R) cable
DC-IN jack
CN6003

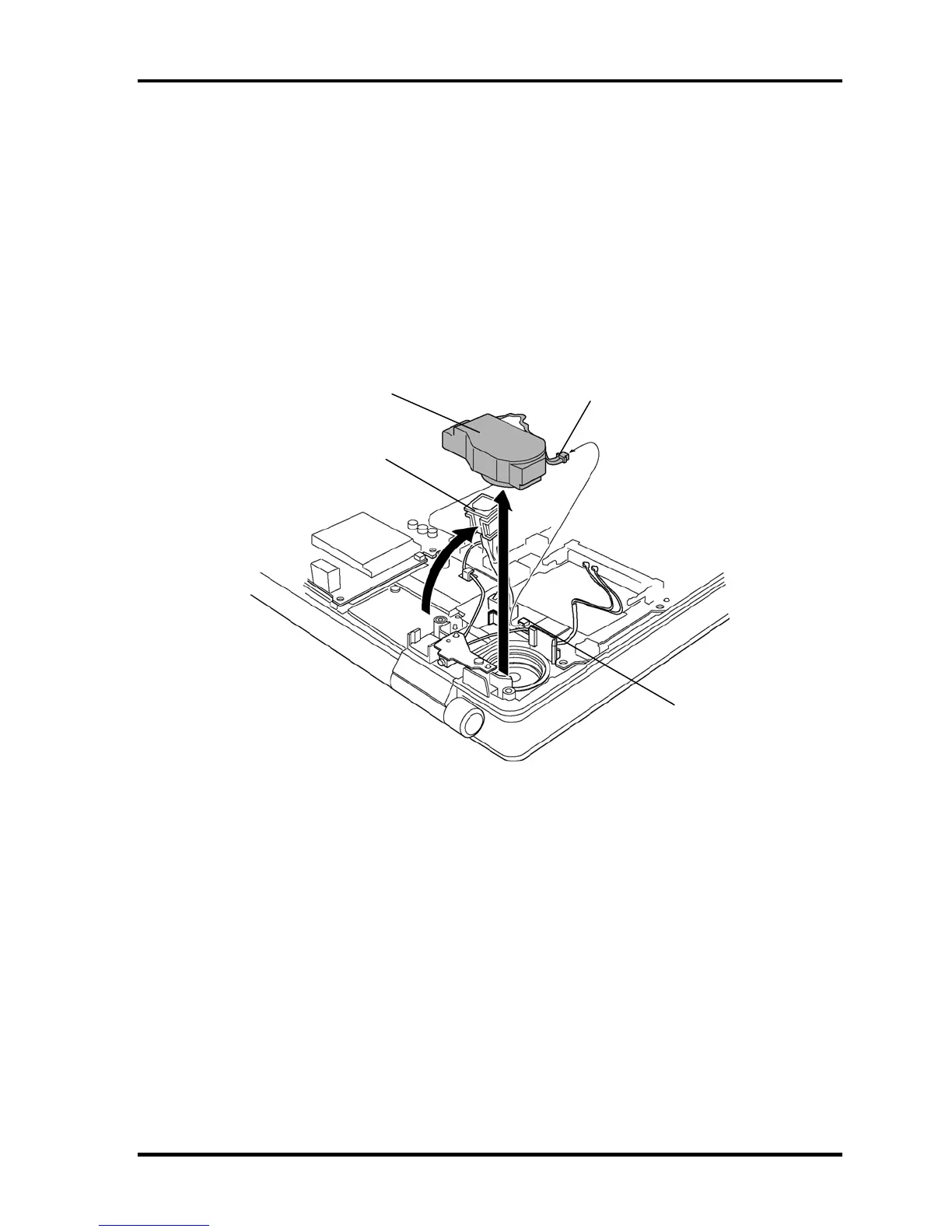

Figure 4-37 Removing the speaker (R)
Installing the speaker (R)
The following describes the procedure for installing the speaker (R) (See Figure 4-37).
1. Connect the speaker (R) cable to the connector CN6003 on the system board.
2. Set the speaker (R) in the slot of cover assembly.
3. Install the DC-IN jack along the guide of cover assembly.
QOSMIO G20 Maintenance Manual (960-511) [CONFIDENTIAL] 4-59
