4 Replacement Procedures 4.38 Hinge
4.38 Hinge
Removing the hinge
The following describes the procedure for removing the hinge (See Figure 4-57).
1. Remove the following screws securing the hinge (L) and remove the hinge (L).
 M2.5x6.0C PSP TIGHT screw x2
2. Remove the following screws securing the hinge (R) and remove the hinge (R).
 M2.5x6.0B FLAT BIND screw x2
Hinge (R)
M2.5x6.0B FLAT BIND
M2.5x6.0C PSP TIGHT
Hinge (L)

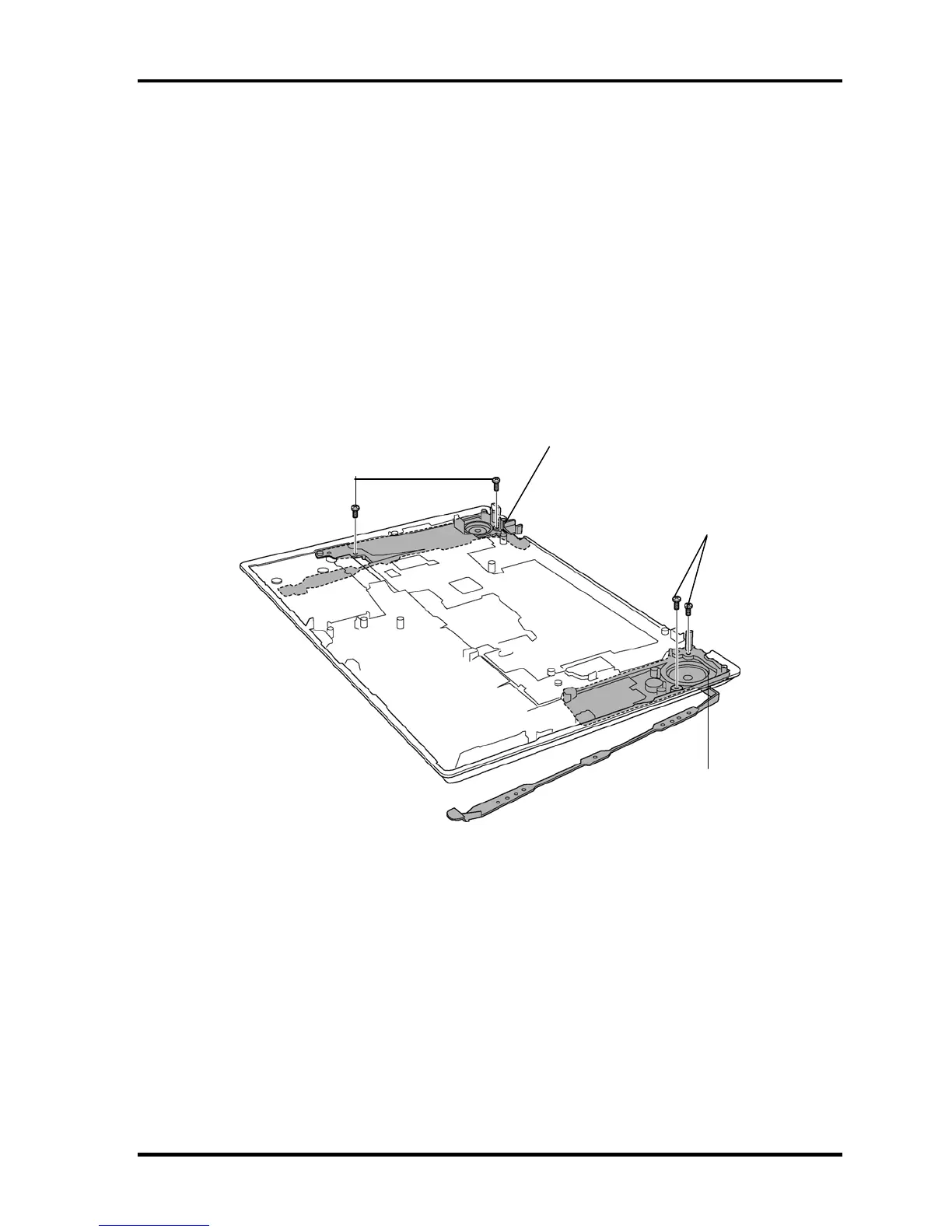

Figure 4-57 Removing the hinge
QOSMIO G20 Maintenance Manual (960-511) [CONFIDENTIAL] 4-87
