4.32 Latch assembly 4 Replacement Procedures
4.32 Latch assembly
Removing the latch assembly
The following describes the procedure for removing the latch assembly (See Figure 4-45).
1. Remove the following screws securing the latch assembly.
M2.5x4.0B FLAT BIND screw x2
2. Pull up and remove the latch assembly.
3. Releasing hooks of latch assembly, disassemble the latch slider and spring.
M2.5x4.0B FLAT BIND
Latch assembly
Latch slider
Spring

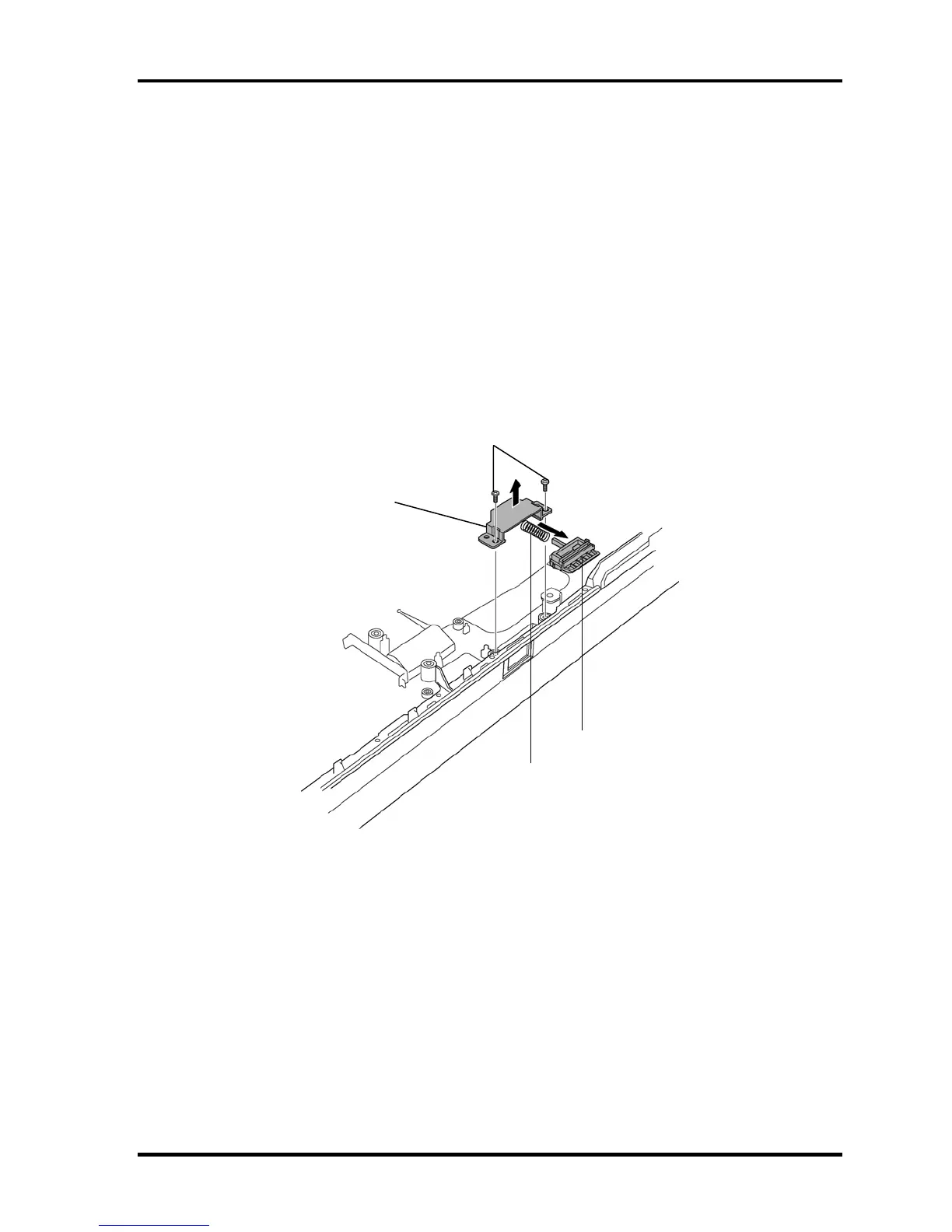

Figure 4-45 Removing the latch assembly
4-72 [CONFIDENTIAL] QOSMIO G20 Maintenance Manual (960-511)
