4.10 Speaker (L) & Modem jack 4 Replacement Procedures
4.10 Speaker (L) & Modem jack
Removing the speaker (L) & Modem jack
The following describes the procedure for removing the speaker (L) & modem jack (See
Figure 4-16).
1. Releasing the AV-IN harness from the guide of bottom cover assembly, disconnect
the AV-IN harness from the connector CN9614 on the AV-IN board.
2. Releasing the wound speaker (L) cable from the guide of bottom cover assembly,
remove the speaker (L) from the slot.
3. Pull up and remove the Modem jack from the slot of bottom cover assembly.
Guide
Modem jack
Speaker (L)
Guide
AV-IN harness
CN9614

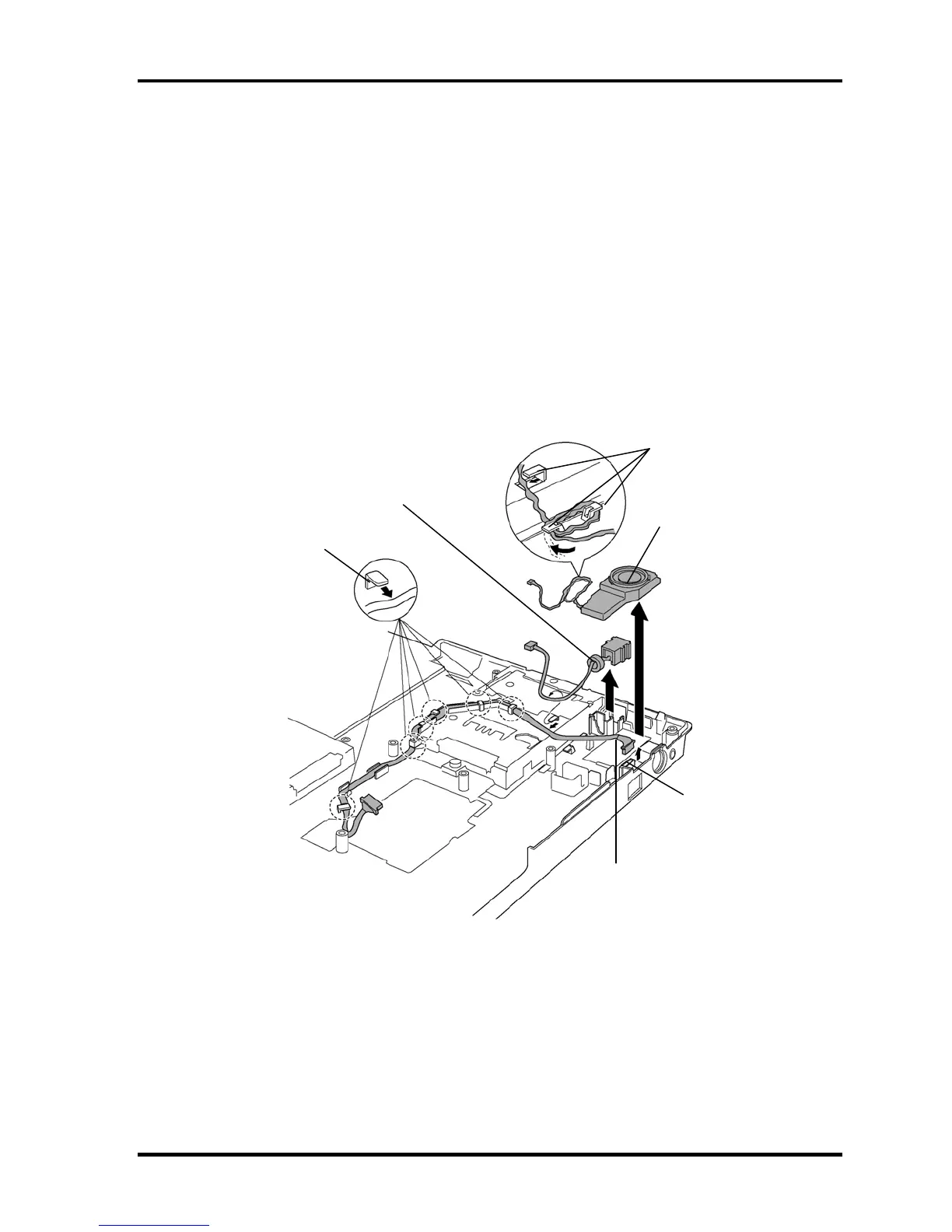

Figure 4-16 Removing the speaker (L) & modem jack
4-30 [CONFIDENTIAL] QOSMIO G20 Maintenance Manual (960-511)
