4 Replacement Procedures 4.29 Volume sensor board
4.29 Volume sensor board
Removing the volume sensor board
The following describes the procedure for removing the volume sensor board (See Figure 4-
42).
1. Remove the following screws securing the volume sensor holder and remove the
volume sensor holder.
 M2.5x2.8B FLAT BIND screw x2
2. Draw the volume harness from the guide of cover assembly and remove the volume
sensor board from the cover assembly.
Volume sensor holder
Volume sensor board
M2.5x2.8B FLAT BIND
Volume harness

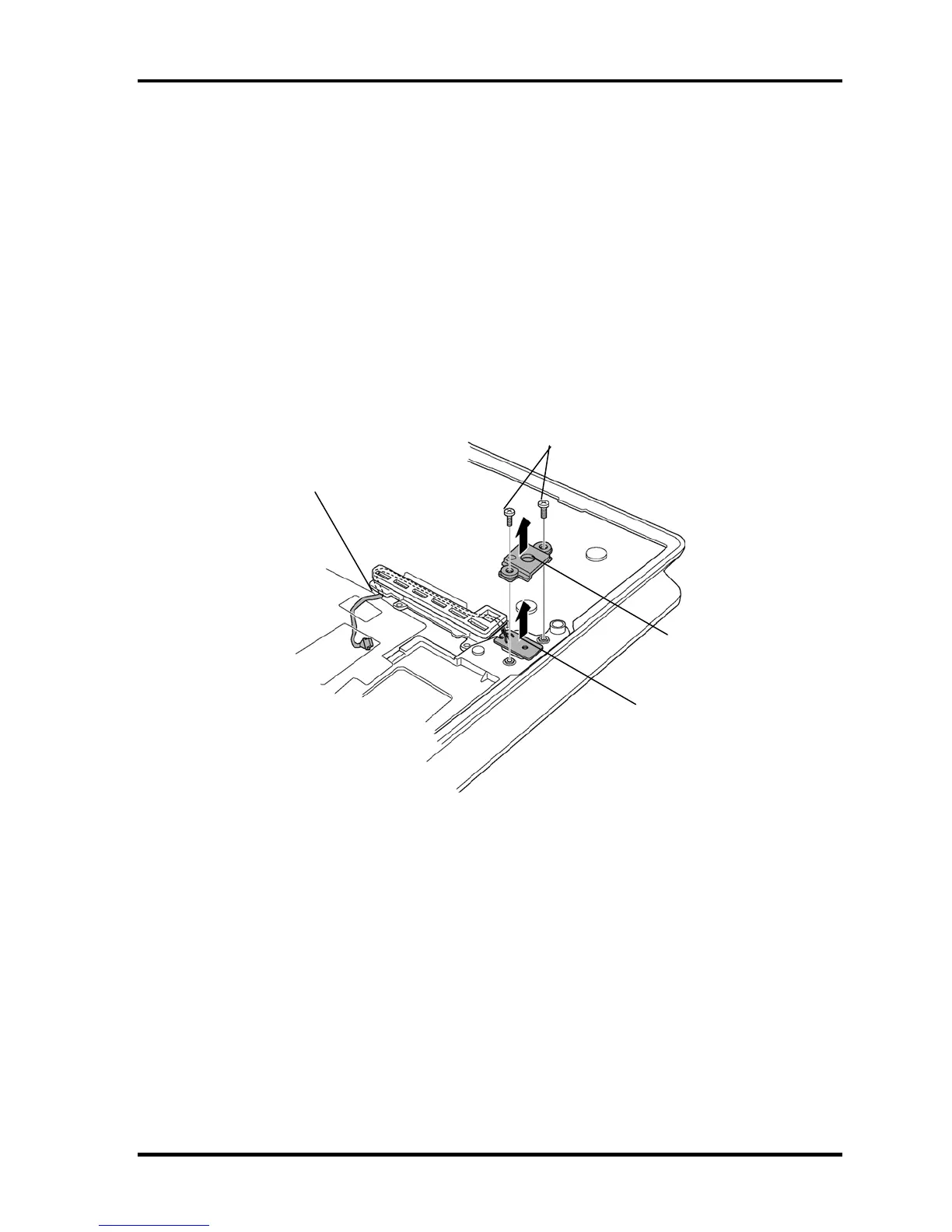

Figure 4-42 Removing the volume sensor board
Installing the volume sensor board
The following describes the procedure for installing the volume sensor board (See Figure 4-
42).
1. Arranging the volume harness along the guide of cover assembly, install the volume
sensor board.
2. Install volume sensor holder and secure it with the following screws.
 M2.5x2.8B FLAT BIND screw x2
QOSMIO G20 Maintenance Manual (960-511) [CONFIDENTIAL] 4-67
