4.17 Battery board / RTC battery 4 Replacement Procedures
4.17.2 RTC battery
Removing the RTC battery
The following describes the procedure for removing the RTC battery (See Figure 4-28).
1. Turning up the insulator, pull out the RTC battery from the insulator.
RTC battery
Insulator

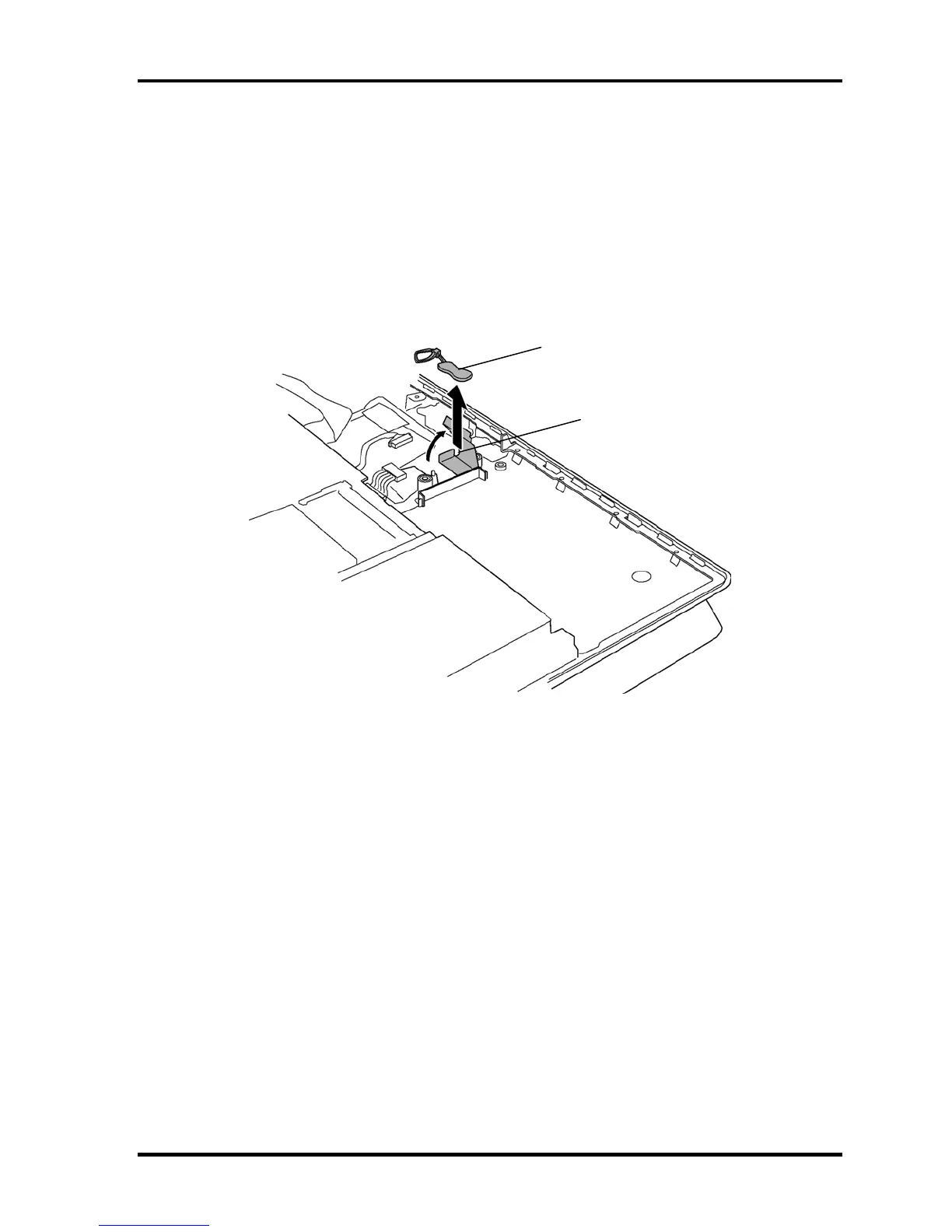

Figure 4-28 Removing the RTC battery
Installing the RTC battery
The following describes the procedure for installing the RTC battery (See Figure 4-28).
1. Turning up the insulator, set the RTC battery into the insulator.
4-48 [CONFIDENTIAL] QOSMIO G20 Maintenance Manual (960-511)
