4.33 LCD unit / FL inverter 4 Replacement Procedures
4.33 LCD unit / FL inverter
CAUTION: When replacing a LCD, it is required that SVP parameter is set. Update with
the latest EC/KBC as described in Appendix H “EC/KBC Rewrite
Procedures”.
Removing the LCD unit / FL inverter
The following describes the procedure for removing the LCD unit and FL inverter (See
Figure 4-46 to 4-49).
1. Removing the mask seal and mask pad, remove the following screws securing the
LCD mask.
 M2.5x8.0B FLAT BIND screw x4
 M2.5x6.0C S-THIN FLAT BIND screw x2
2. Insert your finger between the edge of the LCD mask and the display rear cover, and
remove the LCD mask while releasing the latches.
M2.5x8.0B FLAT BIND
(
with mask seal
)
M2.5x6.0C
S-THIN FLAT BIND
(with mask pad)
M2.5x8.0B FLAT BIND
(
with mask seal
)
LCD mask

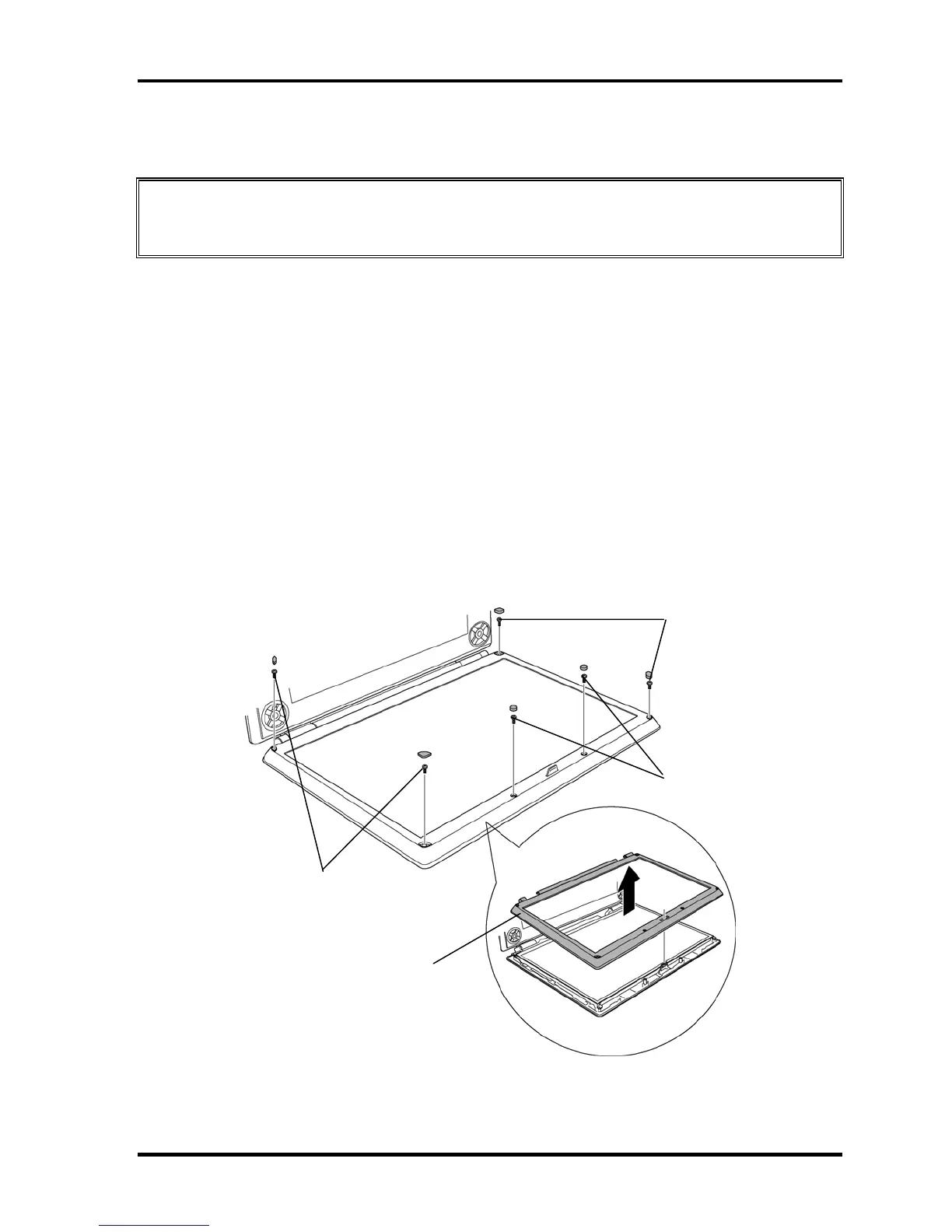

Figure 4-46 Removing the LCD mask
4-74 [CONFIDENTIAL] QOSMIO G20 Maintenance Manual (960-511)
