4 Replacement Procedures 4.21 CPU fin & CPU
4.21 CPU fin & CPU
Removing the CPU fin & CPU
The following describes the procedure for removing the CPU fin & CPU (See Figure 4-32
and 4-33).
1. Remove the following screws securing the CPU holder.
 M2.0x4.0C BIND screw x3
NOTE: When removing the CPU holder, be sure to remove the screws in the reverse
order of the number marked on the holder.
2. Remove the CPU holder and CPU fin.
CPU holder
M2.0x4.0C BIND
M2.0x4.0C BIND
CPU fin

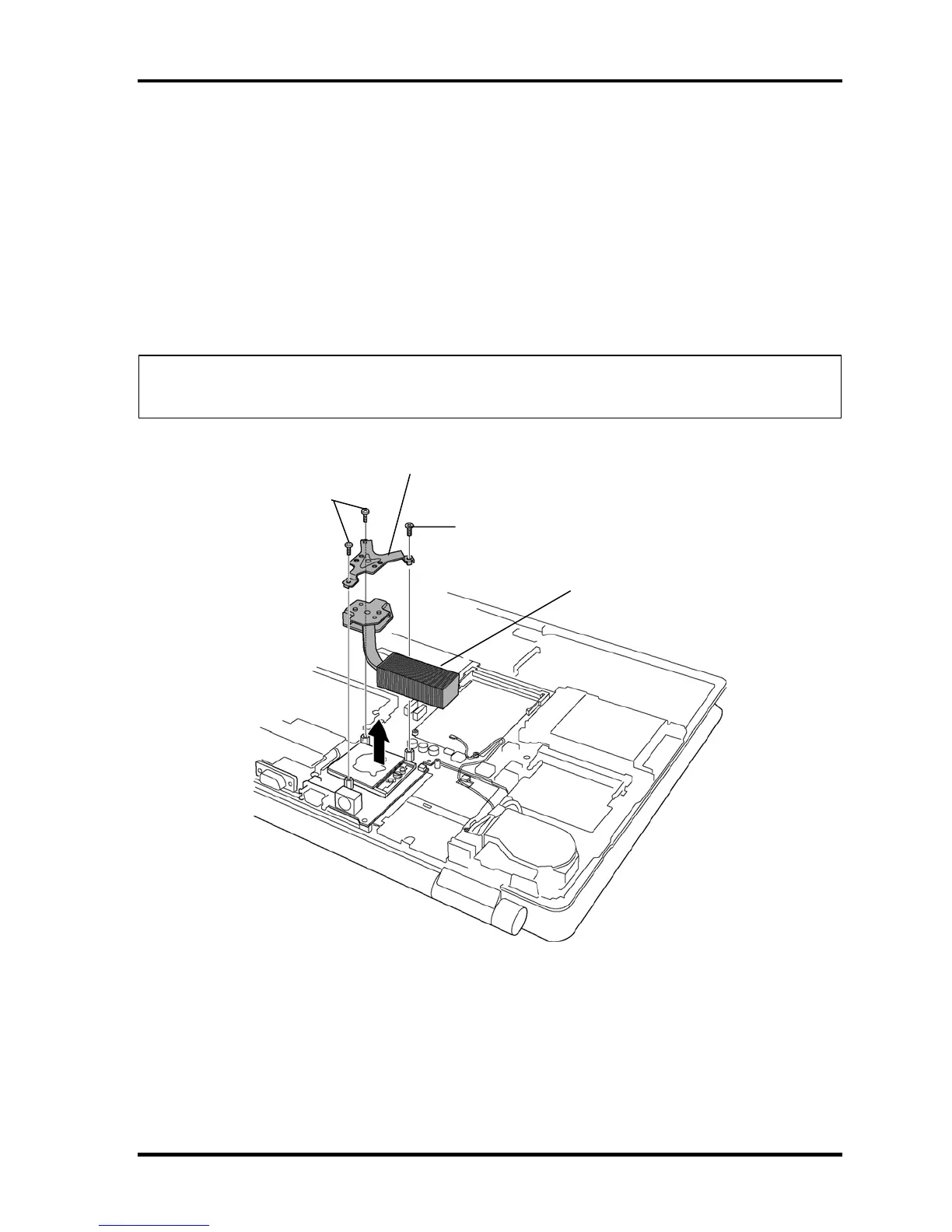

Figure 4-32 Removing the CPU fin
QOSMIO G20 Maintenance Manual (960-511) [CONFIDENTIAL] 4-53
