4.2 Battery pack
Removing the battery pack
The following describes the procedure for removing the battery pack (See Figure 4-1).
CAUTION: Take care not to short circuit the terminals when removing the battery pack.
Similarly, do not drop, knock, scratch, disassemble, twist, or bend the battery
pack.
1. Turn off the power of the computer.
2. Disconnect the AC adapter and all external devices from the computer.
3. Turn the computer upside down.
4. Release the battery lock.
5. Slide the battery latch to the arrow direction and pull up the battery.
6. Release the hooks of the battery cover and remove the battery pack from the battery
cover.
Battery cover
Hook
Batter
lock
Battery latch
Batter
pack

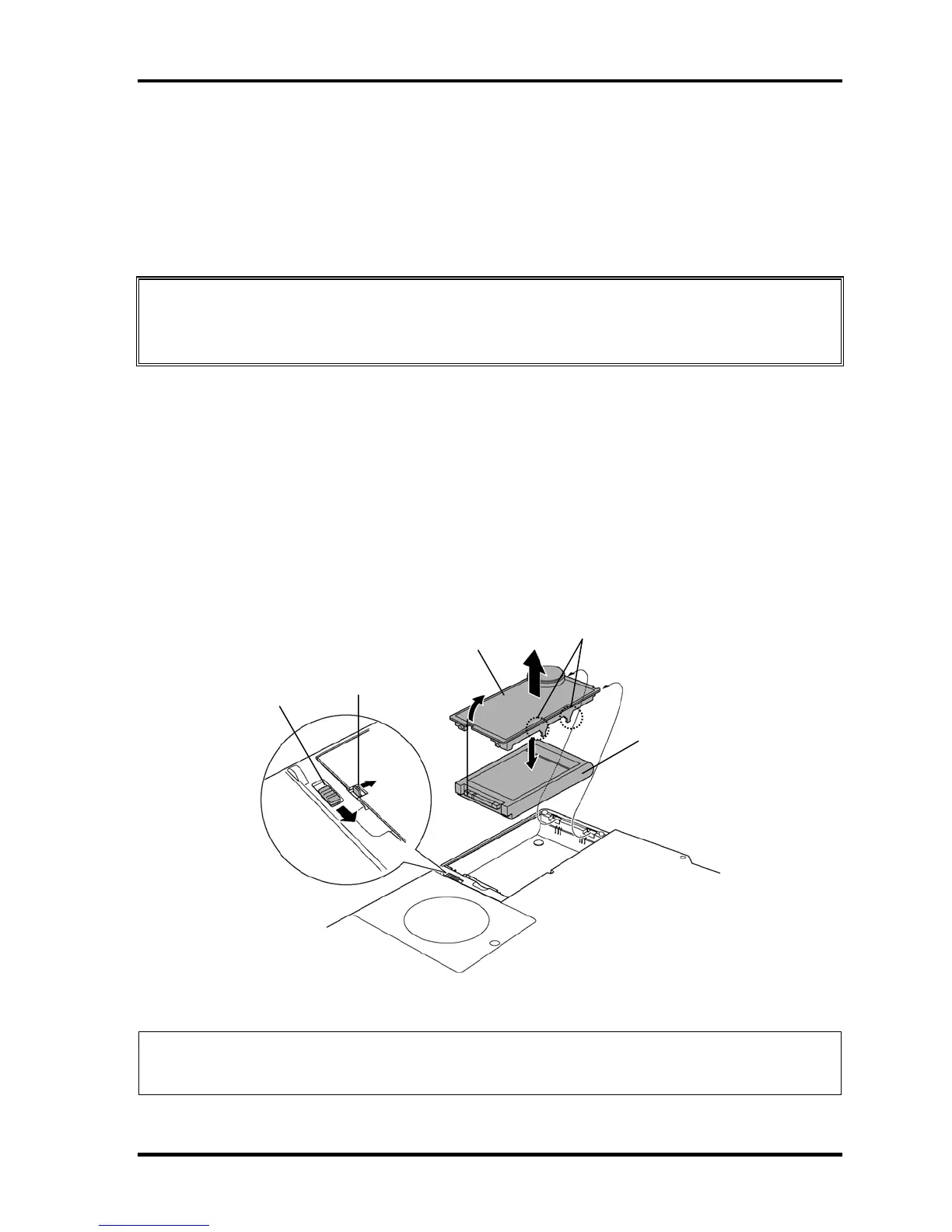

Figure 4-1 Removing the battery pack
NOTE: Dispose of the used battery pack in accordance with the laws and ordinances of
your local authority.
