4 Replacement Procedures 4.18 Wireless LAN card
4.18 Wireless LAN card
Removing the wireless LAN card
The following describes the procedure for removing the wireless LAN card (See Figure 4-29).
1. Disconnect the wireless LAN antenna cables (MAIN & AUX) from the connector
on the wireless LAN card.
2. Open the left and right latches and remove a wireless LAN card from the connector
CN 2200 of mini PCI slot.
CN2200
Wireless LAN card
Wireless LAN antenna cables

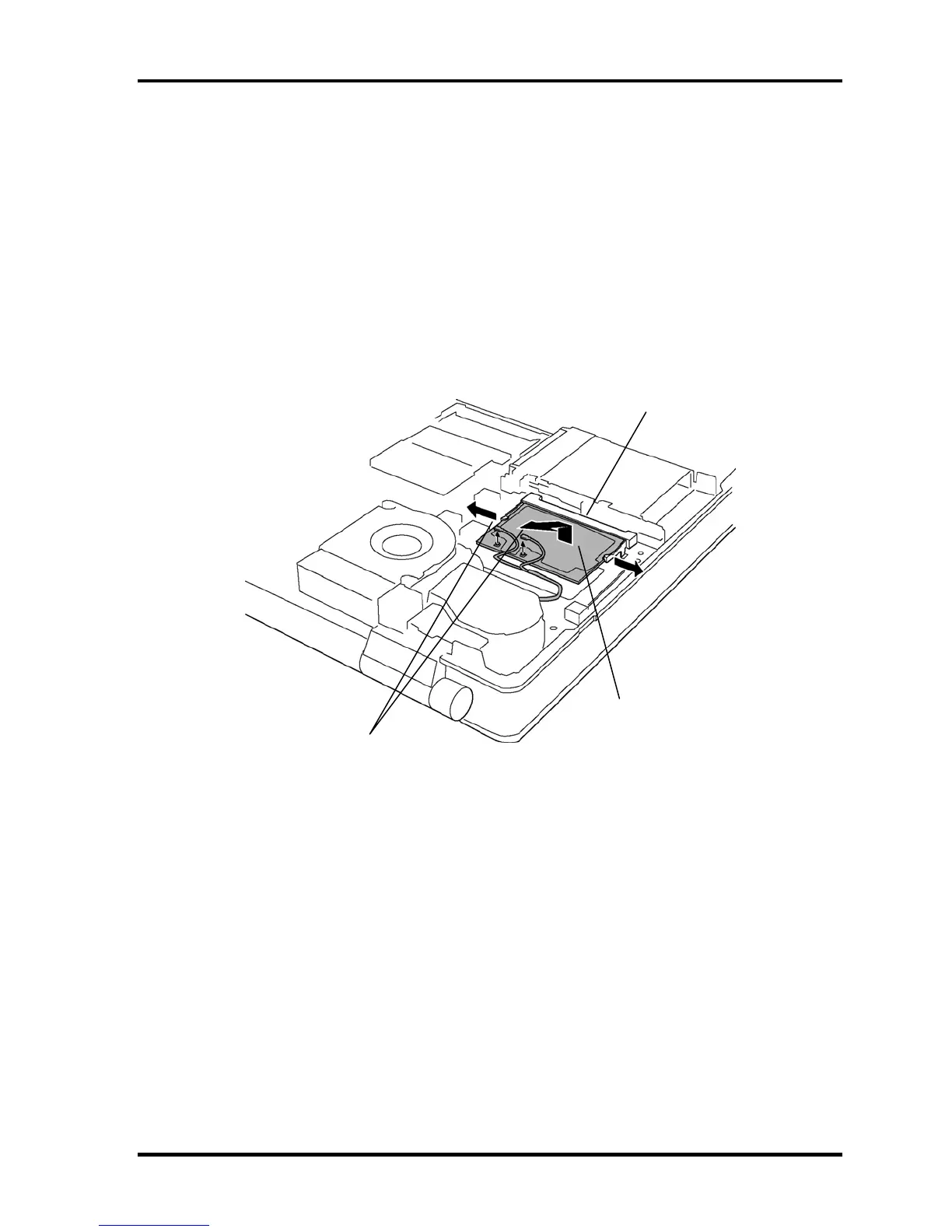

Figure 4-29 Removing the wireless LAN card
Installing the wireless LAN card
The following describes the procedure for installing the wireless LAN card (See Figure 4-29).
1. Insert a wireless LAN card into the connector CN2200 of the mini PCI slot slantwise
and press it to connect firmly.
2. Connect the wireless LAN antenna cables to the connector (White cable to MAIN,
Black cable to AUX) on the wireless LAN card.
QOSMIO G20 Maintenance Manual (960-511) [CONFIDENTIAL] 4-49
