4.28 Bluetooth module
Removing the bluetooth module
The following describes the procedure for removing the bluetooth module (See Figure 4-41).
1. Turning up the insulator, disconnect the bluetooth antenna cable from the
connector on the bluetooth module.
2. Disconnect the bluetooth flat cable from the connector on the bluetooth module.
3. Remove the following screw securing the bluetooth module and remove the
bluetooth module.
 M2.0x3.0C S-THIN FLAT BIND screw x1
M2.0x3.0C
S-THIN FLAT BIND
Bluetooth flat cable
Bluetooth module
Insulator
Bluetooth antenna cable

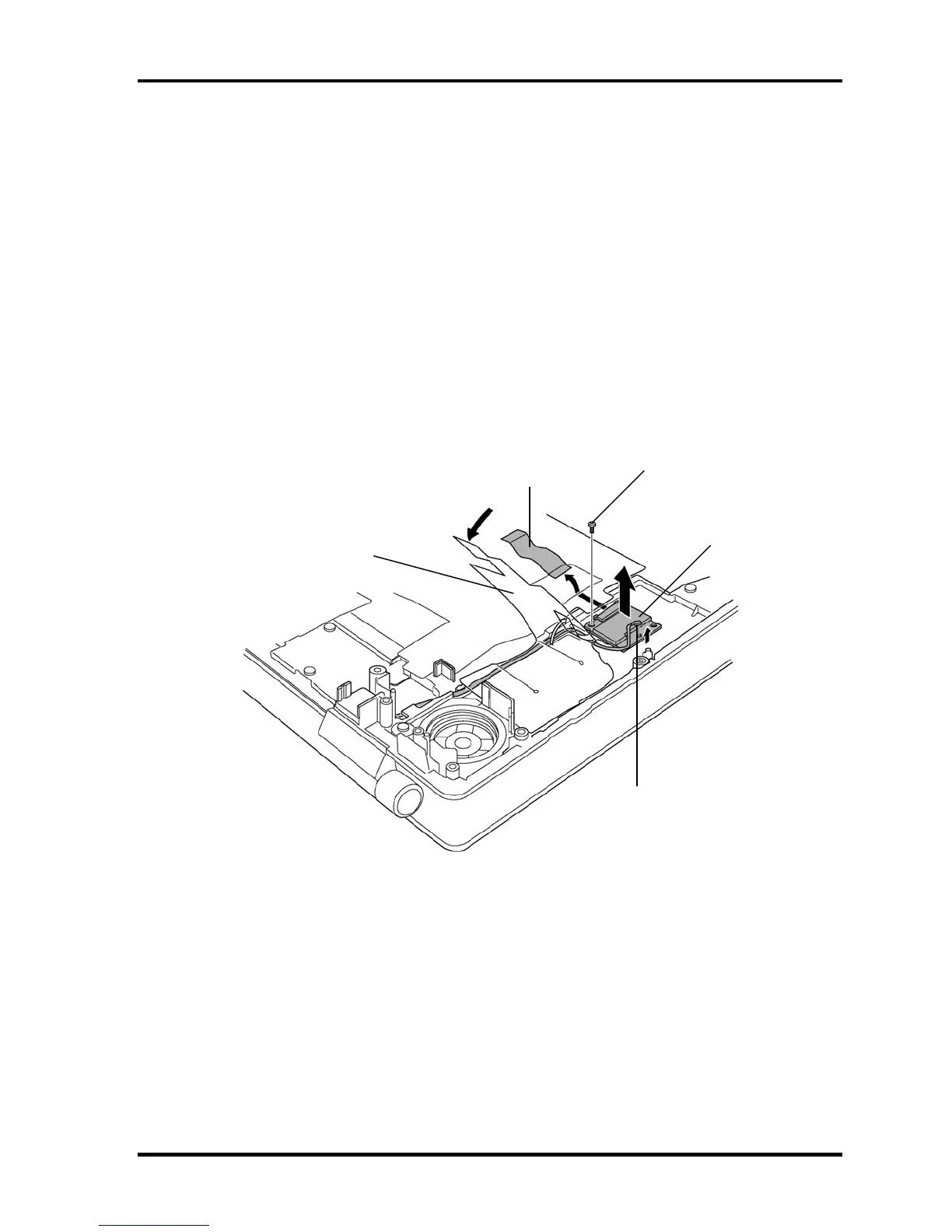

Figure 4-41 Removing the bluetooth module
