4.34 LCD harness 4 Replacement Procedures
3. Remove the hinge front cap (L) from the display assembly.
4. Remove the following screw securing the LCD harness holder (display rear cover
side) and remove the LCD harness holder from the display rear cover.
 M2.5x4.0B FLAT BIND screw x1
Hinge front cap (L)
M2.5x4.0B FLAT BIND
LCD harness holder

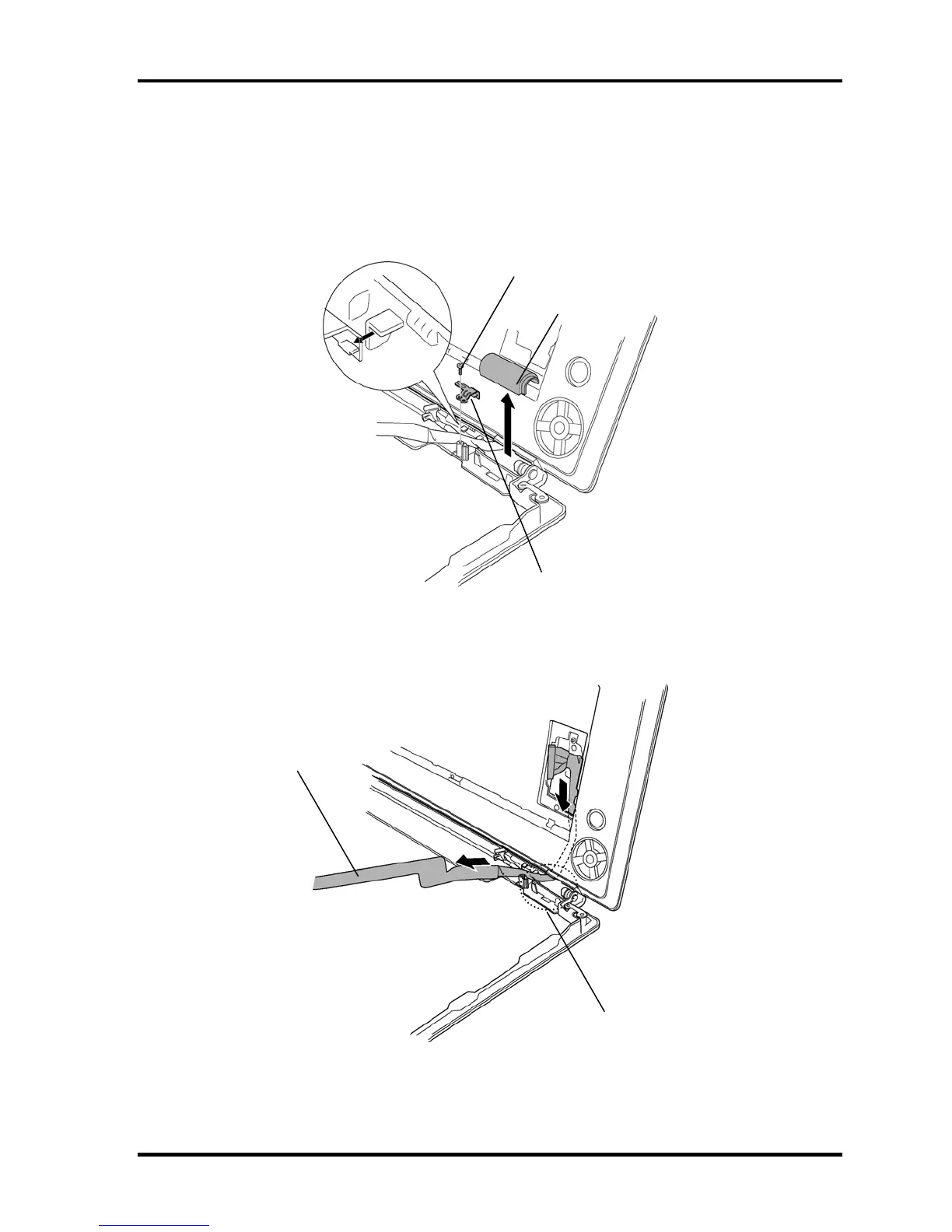

Figure 4-51 Removing the LCD harness holder
5. Remove the LCD harness from the slot of display assembly.
LCD harness
slot
Figure 4-52 Removing the LCD harness
4-80 [CONFIDENTIAL] QOSMIO G20 Maintenance Manual (960-511)
