4.12 Battery latch assembly 4 Replacement Procedures
3. Remove the battery lock from the battery assembly.
4. Releasing the tab, disassembling the battery latch slider from battery latch base.
Battery latch slider
Spring
Battery latch base
Battery lock

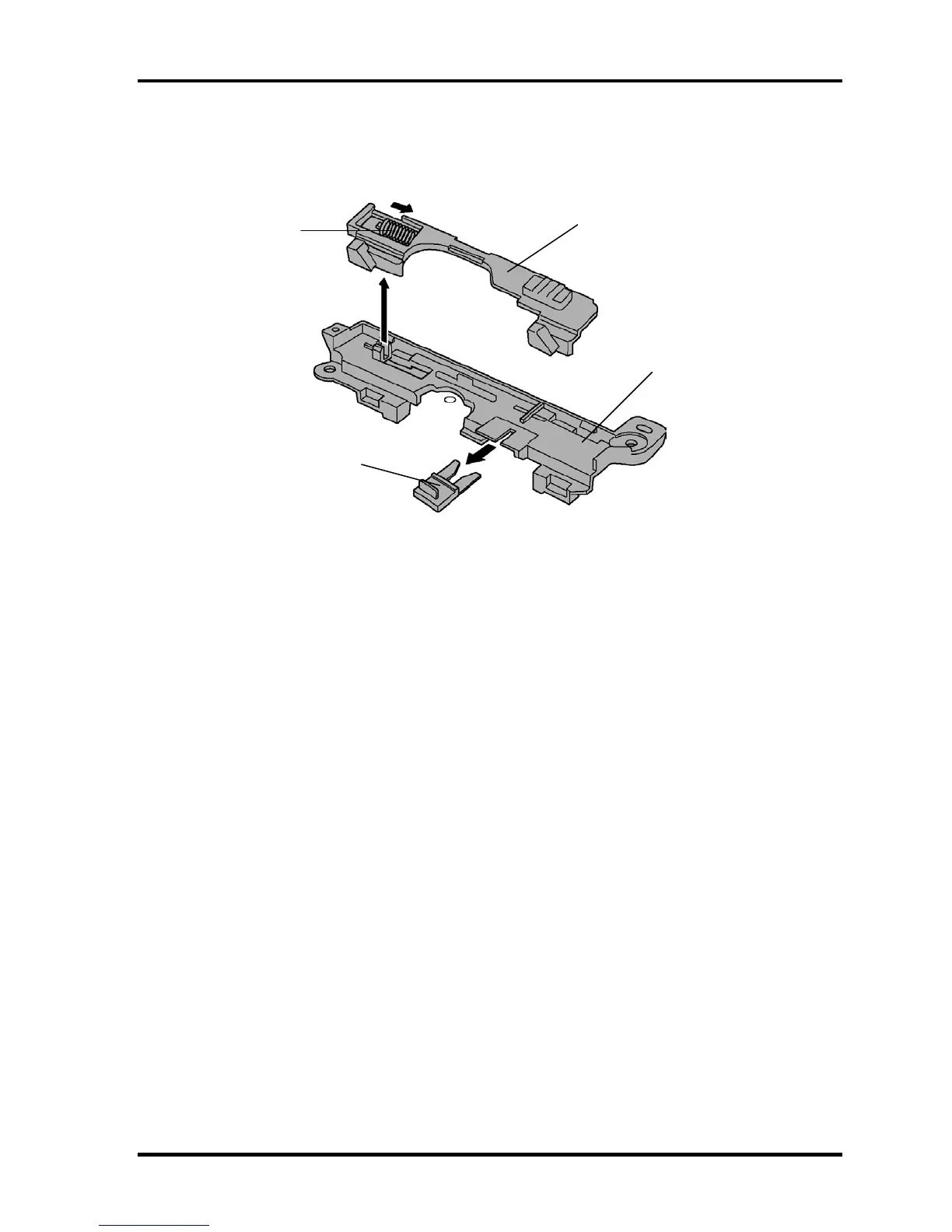

Figure 4-19 Removing the battery lock and battery latch slider
Installing the battery latch assembly
The following describes the procedure for installing the battery latch assembly (See Figure 4-
18 and 4-19).
1. Assemble the spring and battery latch slider to the battery latch base while
hooking the tab.
2. Install the battery lock to the battery latch assembly.
3. Install the battery latch assembly to the bottom cover assembly and secure it with the
following screws.
 M2.5x4.0B S-THIN FLAT BIND screw x1
4-34 [CONFIDENTIAL] QOSMIO G20 Maintenance Manual (960-511)
