B.5 SJ board Appendix B Board Layout
B.5 SJ board
<Front layout>
(a)
<Back layout>
(b)
(g)
(f) (e)
(d)
(c)

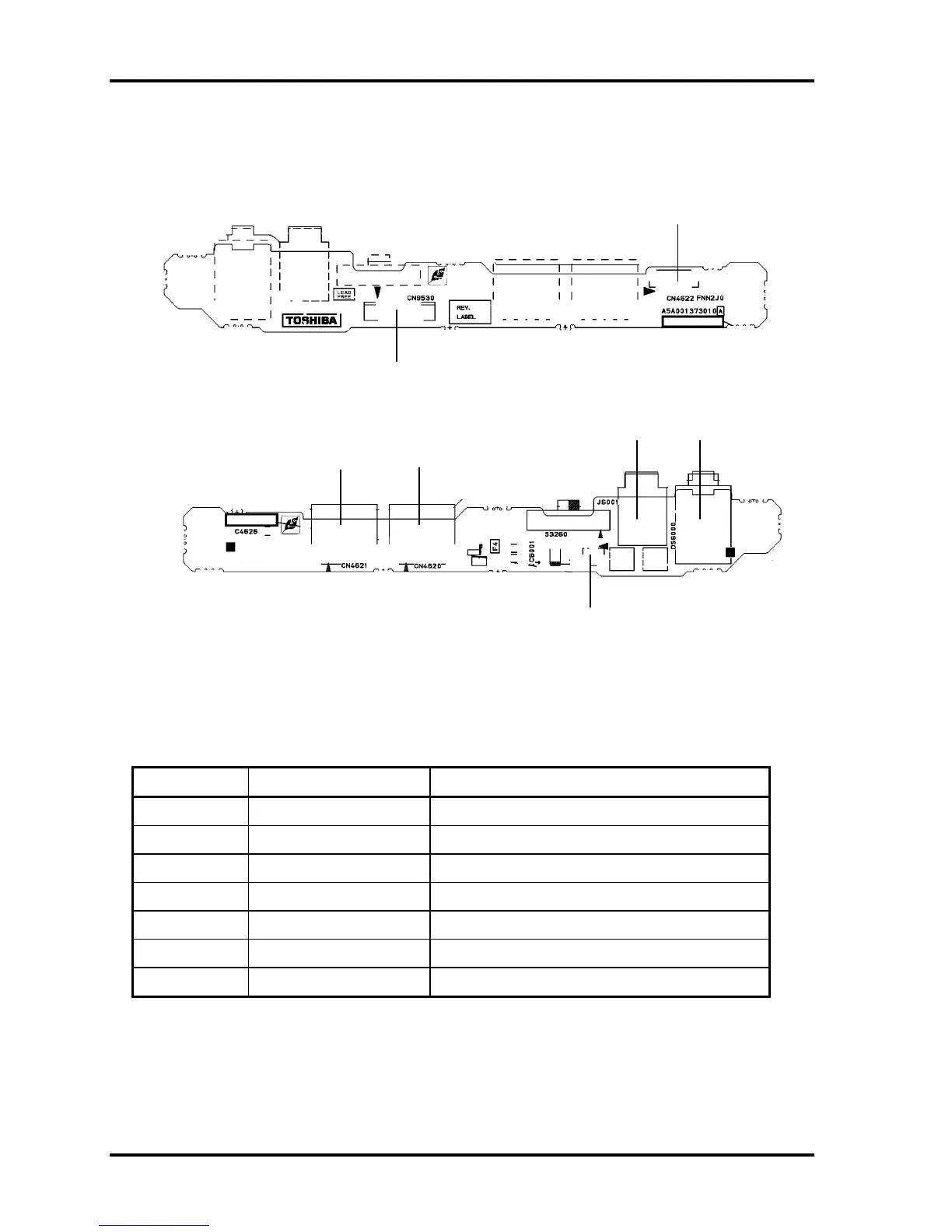

Figure B-5 SJ board layout
Table B-5 SJ board connectors
Mark Number Name
(a) CN4620 USB harness connector
(b) CN9530 Sound jack FFC connector
(c) CN4621 USB port 6
(d) CN4620 USB port 4
(e) J600 External microphone jack
(f) D5600 Headphone jack
(g) CN4621 Internal microphone I/F connector
B-8 [CONFIDENTIAL] QOSMIO G20 Maintenance Manual (960-511)
