J.3Operation of Independent utility
Appendix J Maintenance of TOSHIBA RAID

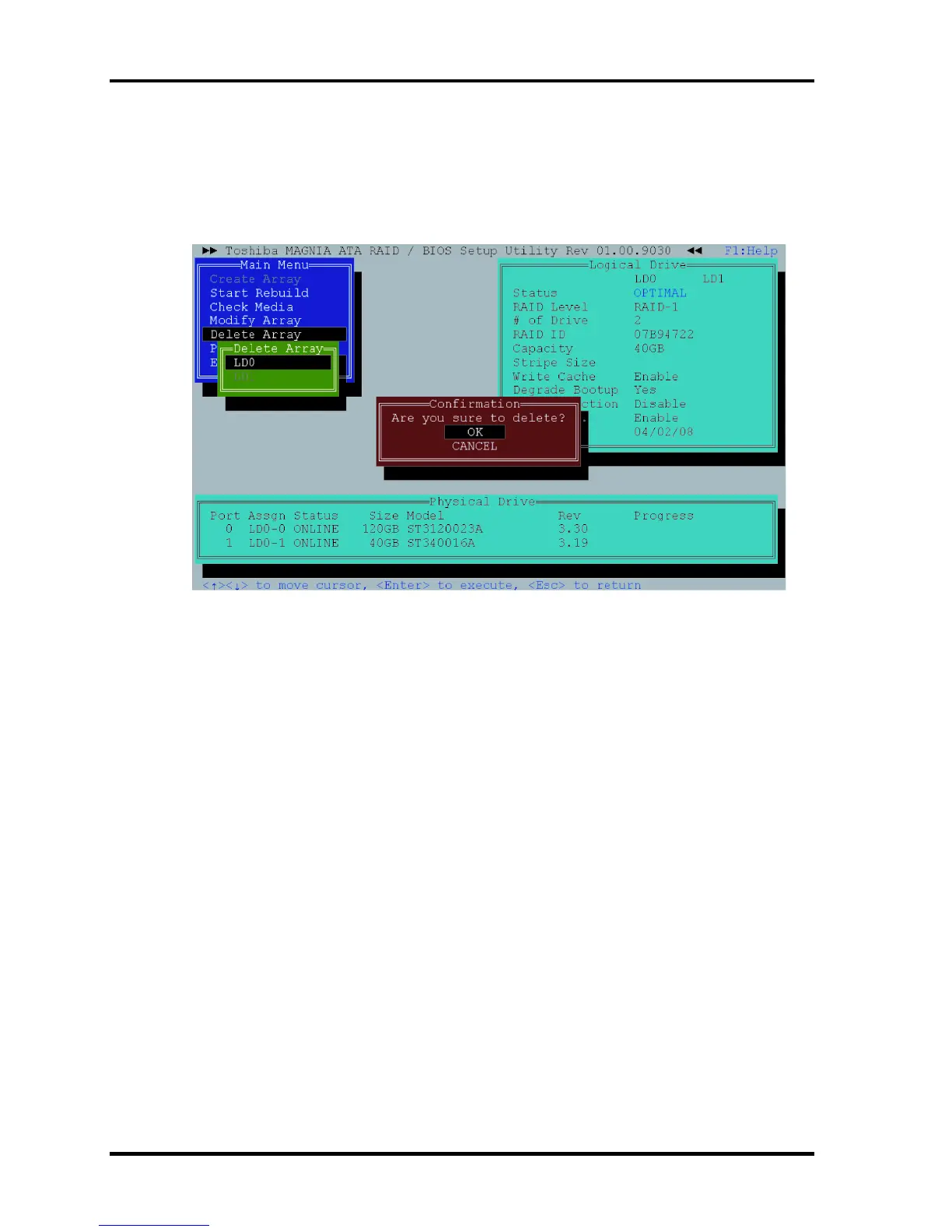

Delete Array
Selects [Delete Array] of Setup Utility and delete array. Put the cursor on the array you
want to delete and press
[Enter]
key.
When [Confirmation] is displayed, select “OK” to store the setting.
J-22 [CONFIDENTIAL]
Q
OSMIO G20 Maintenance Manual (960-511)
437
439
