Toshiba TECRA A9 Series Maintenance Manual

2.13 Wireless LAN Troubleshooting 2 Troubleshooting Procedures
Procedure 2 Antenna Connection Check

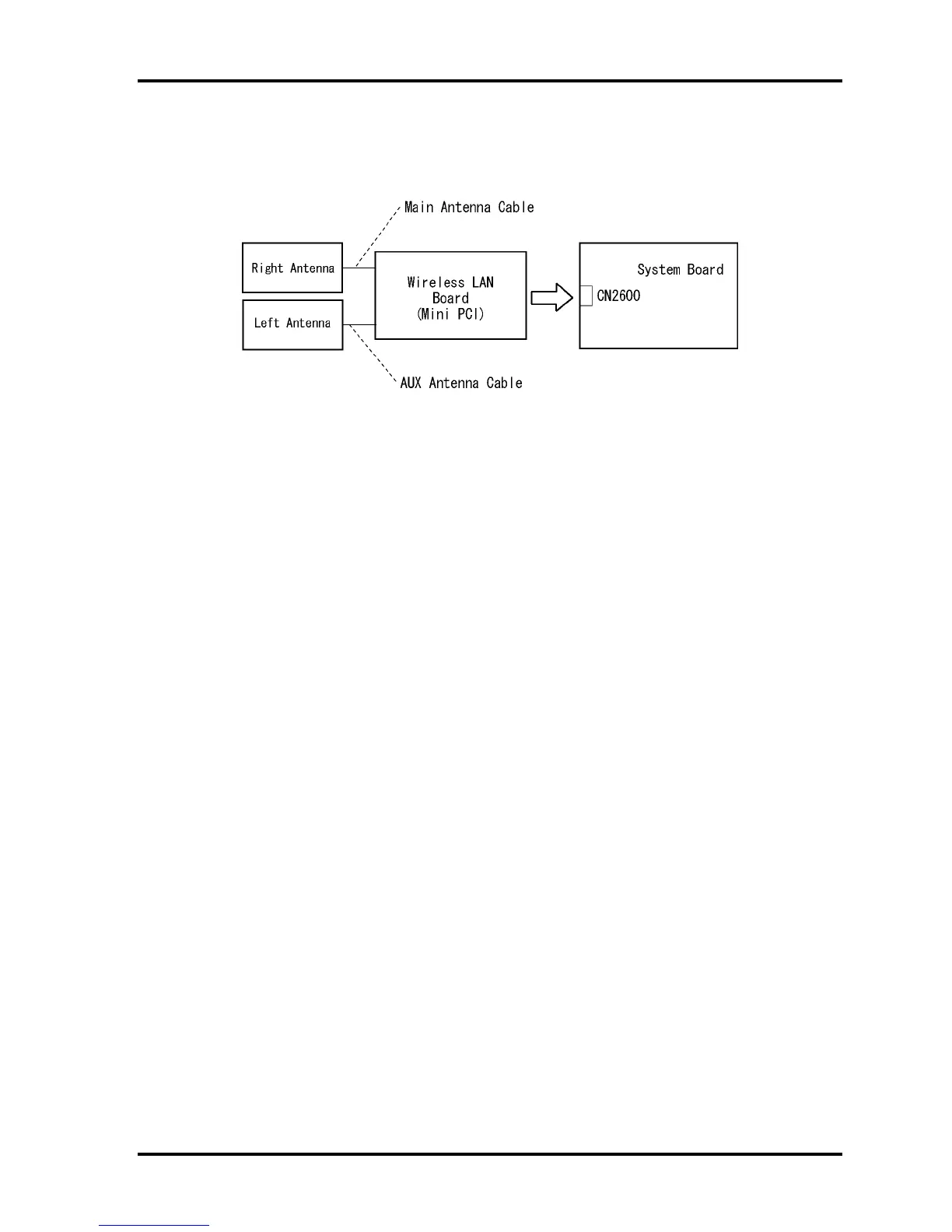

The wireless LAN wiring diagram is shown below:
Any of the connections may be disconnected. Disassemble the computer following the steps
described in Chapter 4, Replacement Procedures, and perform the following checks:
Check 1 Make sure the wireless LAN board is firmly connected to CN2600 on the system
board.
If the connector is disconnected, connect it firmly. If the wireless LAN board is
still not functioning properly, perform Check 2.
Check 2 Make sure the wireless LAN antenna cables are firmly connected to the wireless
LAN board.
If the wireless LAN antenna cables are disconnected, connect them firmly. If the
wireless LAN board is still not functioning properly, go to Procedure 3.
TECRA A9(S5/P5/S200) Maintenance Manual (960-633)[CONFIDENTIAL] 2-53

Toshiba TECRA A9 Series Specifications

General

Processor	Intel Core 2 Duo
Display	15.4-inch
Display Resolution	1280 x 800 pixels
RAM	Up to 4 GB
Operating System	Windows Vista
Optical Drive	DVD-RW
Wireless	802.11a/g/n
Ports	USB 2.0, VGA, Ethernet, Headphone
