4 Replacement Procedures 4.29 Speaker
4.29 Speaker
Removing the Speaker
To remove the speaker, follow the steps below and refer to Figure 4-52 to 4-54.
1. Peel off the insulator and pass the speaker cable through the hole of the cover
assembly.
2. Remove the speakers from the slots and pass them through the holes of the cover
assembly.
Speaker (right)
* Be careful of the
direction, when
installing.
Insulator
Hole
Speaker cable
Hole

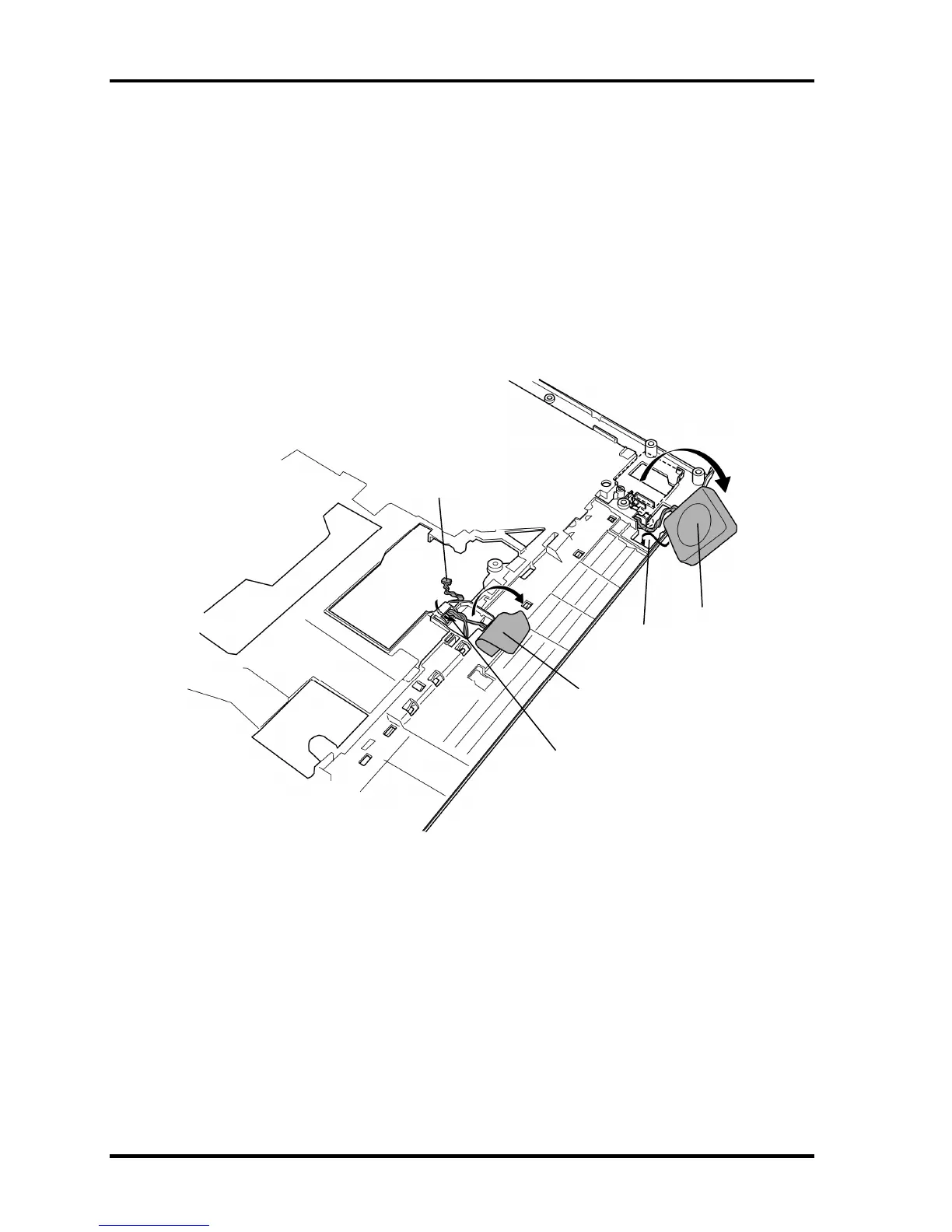

Figure 4-52 Removing the speaker (1)
4-92 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)
