4.29 Speaker 4 Replacement Procedures
Speaker (left)
* Be careful of the direction,
when installing.
Hole

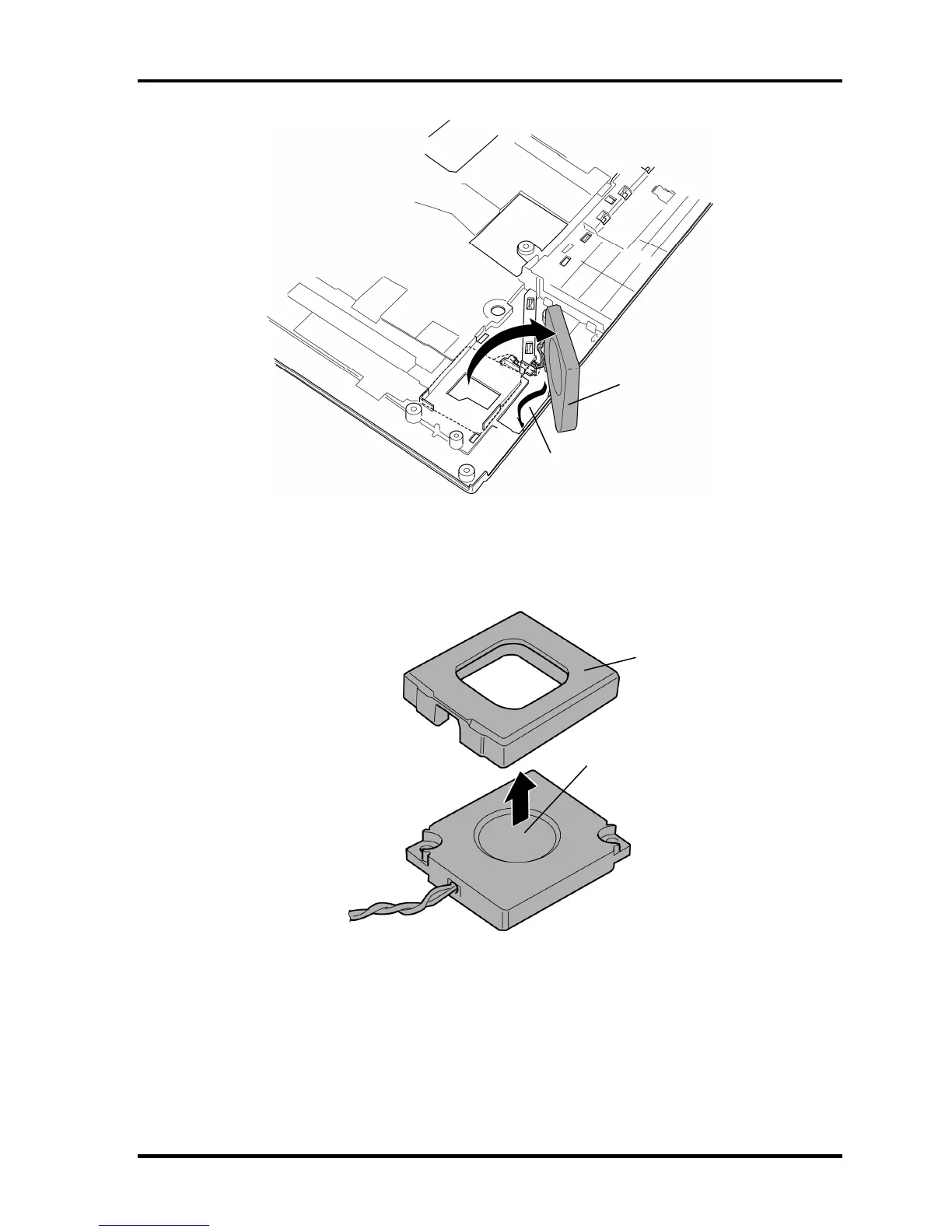

Figure 4-53 Removing the speaker (2)
3. Separate the speakers (left and right) and speaker covers (left and right).
Speaker cover
* Be careful of the
direction, when installing.
Speaker (View from the back)
Figure 4-54 Removing the speaker (3)
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-93
