4 Replacement Procedures 4.22 North bridge (and GPU) heat sink/CPU heat sink/Fan/CPU
4.22 North bridge (and GPU) heat sink/CPU heat sink/Fan/CPU
Removing the North bridge (and GPU) heat sink/CPU heat sink/Fan/CPU
To remove the North bridge (and GPU) heat sink/CPU heat sink/fan/CPU, follow the steps
below and refer to Figure 4-36 to 4-40.
1. Remove the following screws and remove the North bridge and GPU hold plate.
(In the case of the GPU model.)
• M2×4B BIND screw ×4
2. Remove the North bridge and GPU heat sink.
M2×4B BIND
North bridge and GPU Heat sink
M2×4B BIND
North bridge and GPU hold plate

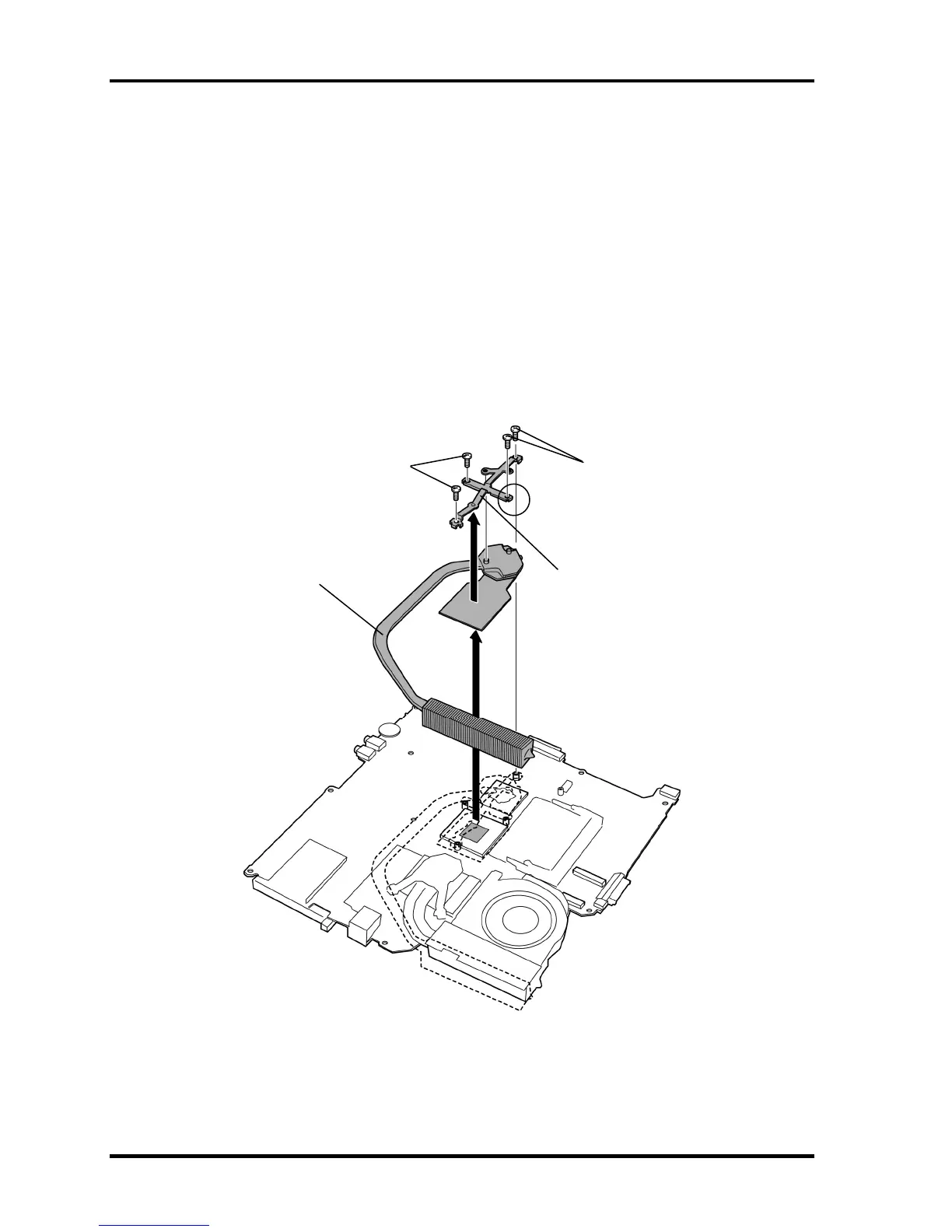

Figure 4-36 Removing the North bridge and GPU hold plate
