4.19 System board 4 Replacement Procedures
4.19 System board
Removing the System board
To remove the system board, follow the steps below and refer to Figure 4-31 to 4-33.
1. Remove the cable holder while pushing four hooks up.
Cable holder
Hook
Hook

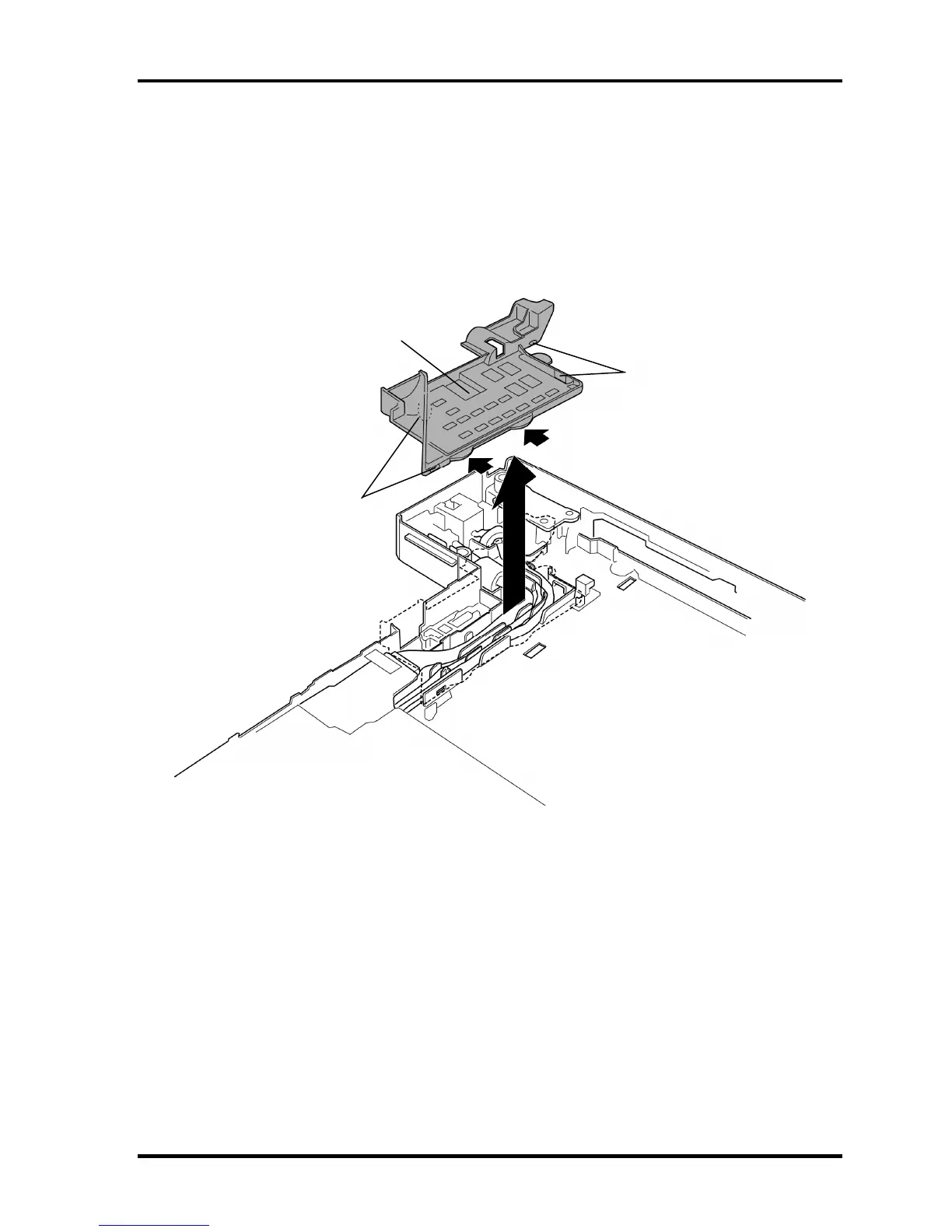

Figure 4-31 Removing the cable holder
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-51
