4 Replacement Procedures 4.2 Battery pack
4.2 Battery pack
Removing the Battery pack
To remove the battery pack, follow the steps below and refer to Figure 4-1.
CAUTION: Take care not to short circuit the terminals when removing the battery pack.
Similarly, do not drop, knock, scratch, disassemble, twist, or bend the
battery pack.
1. Turn off the power of the computer.
2. Disconnect the AC adapter and other external devices from the computer.
3. Turn the computer face down.
4. Release the battery lock.
5. Remove the battery pack while sliding the battery release latch as shown in the
following figure.
NOTE: For environmental reasons, do not throw away a spent battery pack.
Battery pack
Battery release latch
Battery lock

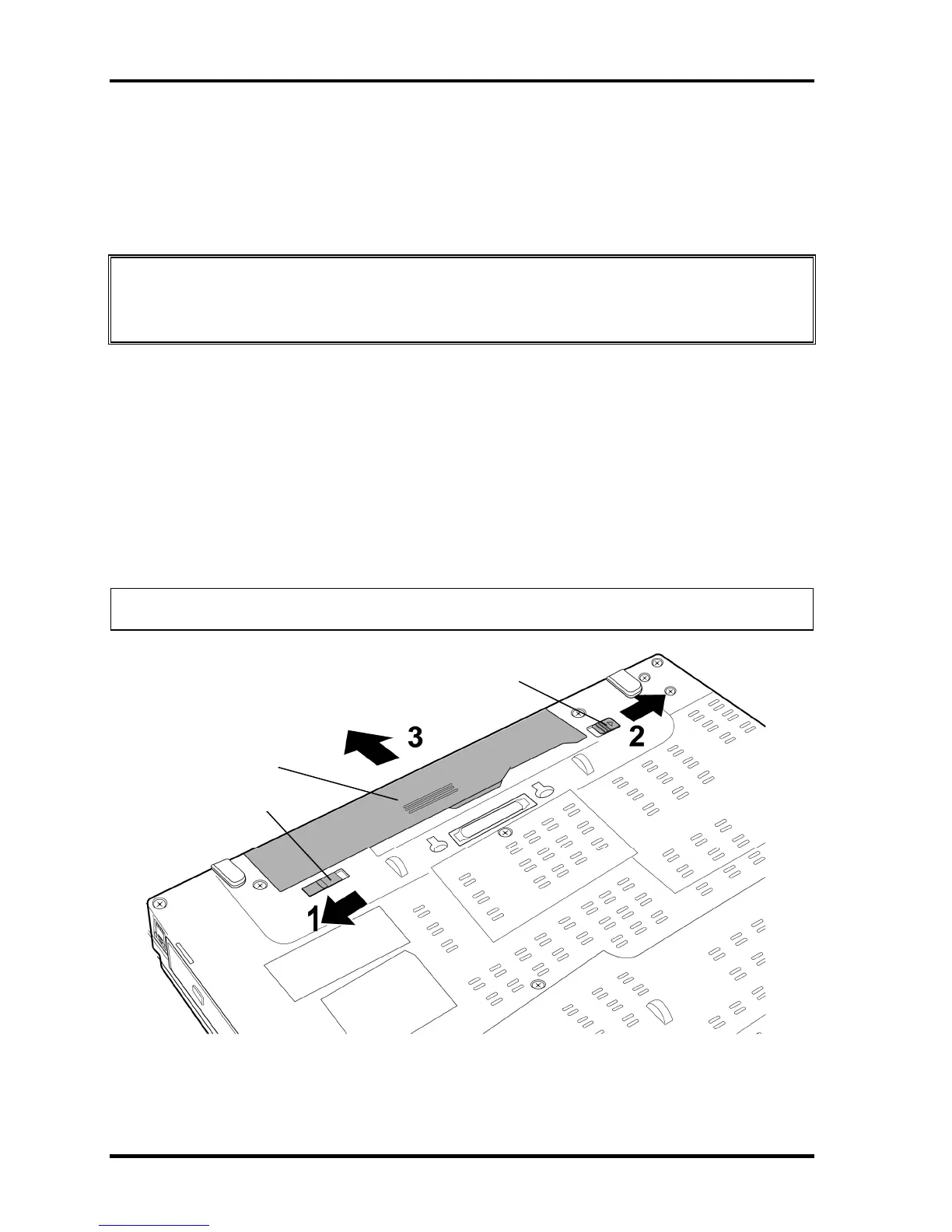

Figure 4-1 Removing the battery pack
4-8 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)
