4 Replacement Procedures 4.6 MDC/Memory module
4.6 MDC/Memory module
Removing the MDC/Memory module
To remove the MDC/memory module, follow the steps below and refer to Figure 4-7 and 4-8.
1. Loosen the screw and remove the memory module cover.
2. Open the left and right latches outside and remove the memory module(s).
CAUTION: When removing the memory module, make sure the computer is in boot
mode and powered off.
Never press hard or bend the memory module.
Memory module cover
Screw
Memory module A
(Under the memory module B)
Memory module B
Latch
Latch

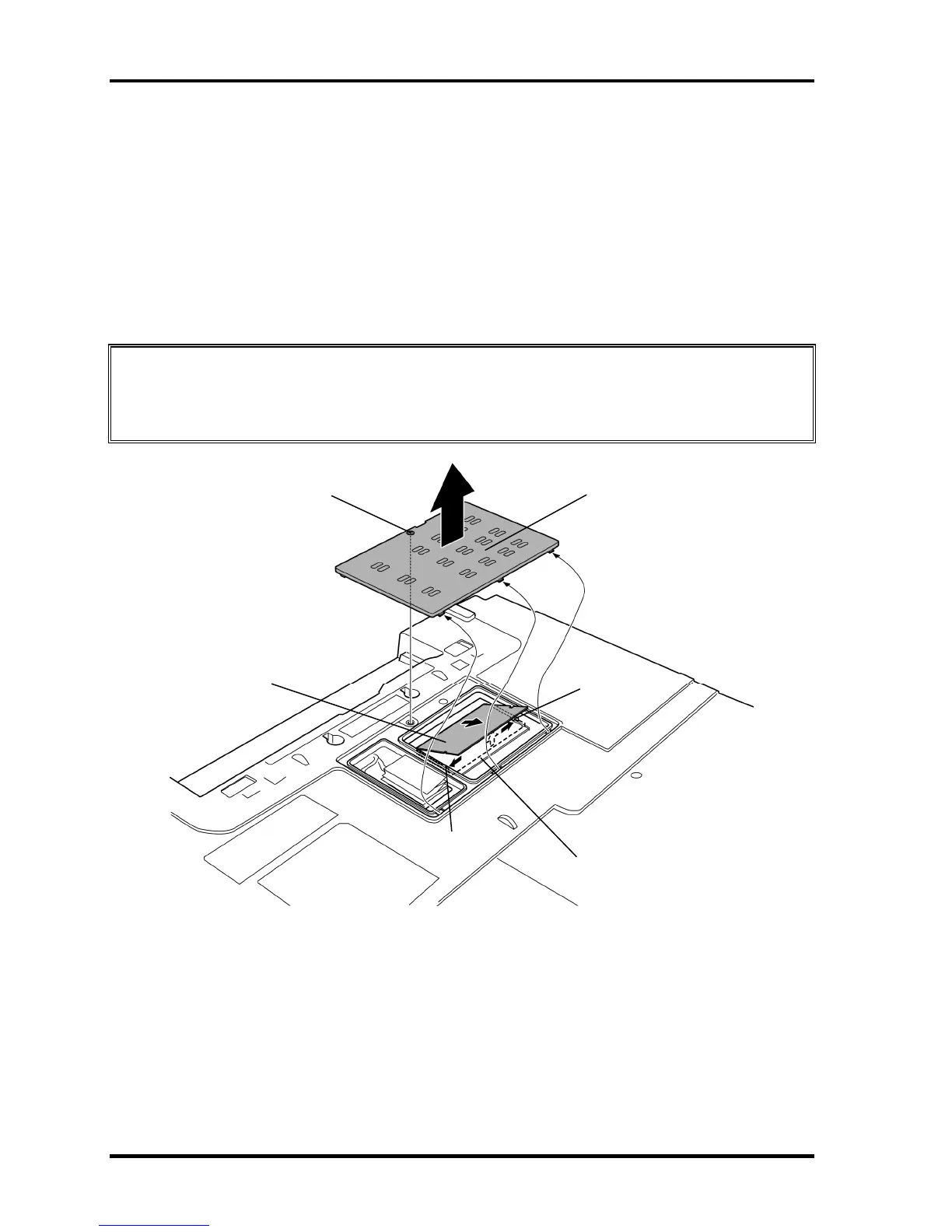

Figure 4-7 Removing the memory module
4-16 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)
