Toshiba TECRA A9 Series Maintenance Manual

4.6 MDC/Memory module 4 Replacement Procedures
3. Remove the following screws securing the MDC.
• M2×4B BIND screw ×2
4. Lift the MDC straight above and remove it from the CN3010 on the system board.
5. Disconnect the MDC cable from the connector on the MDC.
MDC
CN3010
MDC cable
M2×4B BIND

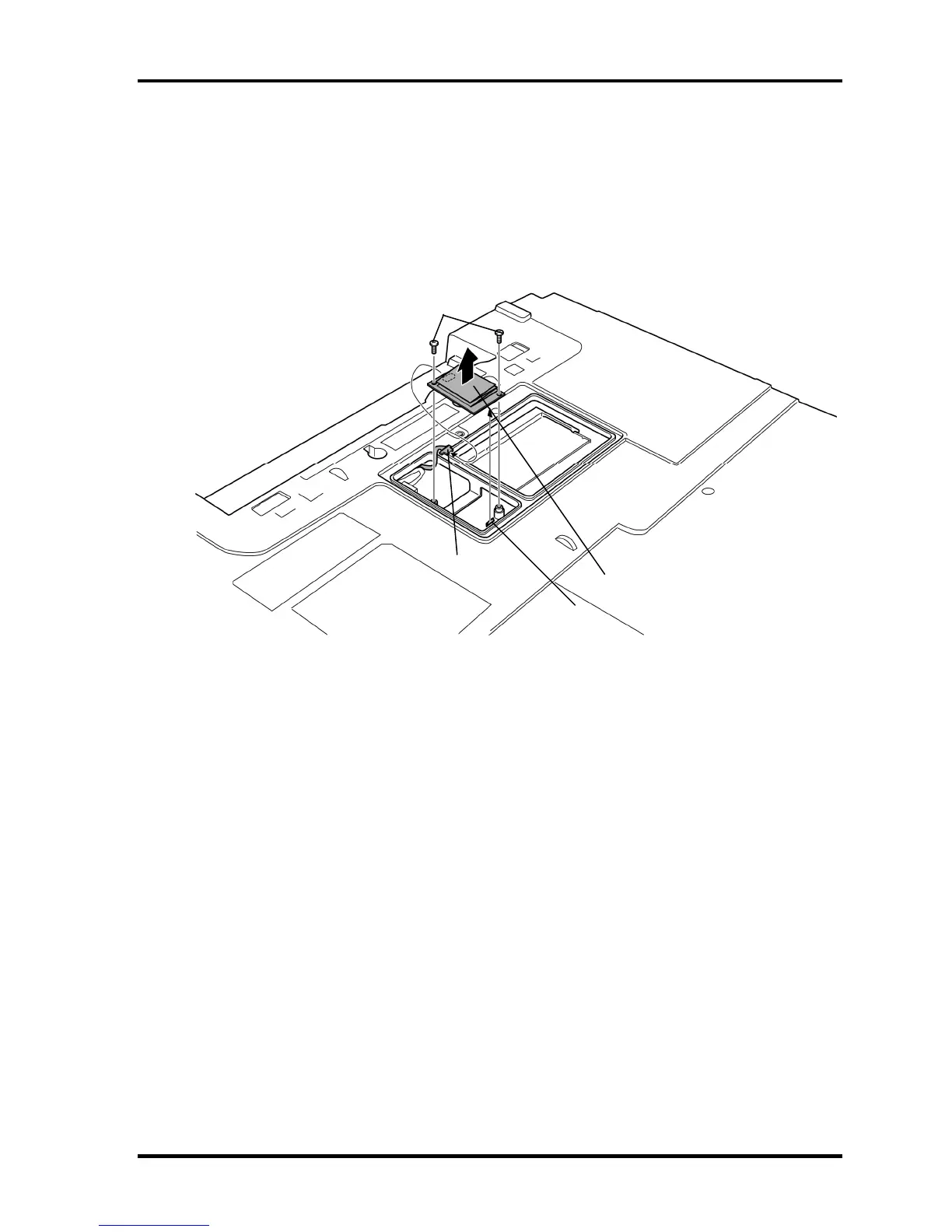

Figure 4-8 Removing the MDC
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-17

Toshiba TECRA A9 Series Specifications

General

Processor	Intel Core 2 Duo
Display	15.4-inch
Display Resolution	1280 x 800 pixels
RAM	Up to 4 GB
Operating System	Windows Vista
Optical Drive	DVD-RW
Wireless	802.11a/g/n
Ports	USB 2.0, VGA, Ethernet, Headphone
