4.10 Fan hood 4 Replacement Procedures
4.10 Fan hood
NOTE: When repairing the PC, clean the fan hood and cooling fin with a vacuum
cleaner and cotton sticks, and remove dusts with tweezers.
Removing the Fan hood
To remove the fan hood, follow the steps below and refer to Figure 4-15.
1. Peel off the insulator that prevents a waterdrop from entering the computer and
remove the fan hood from the slot.
Fan hood
Insulator

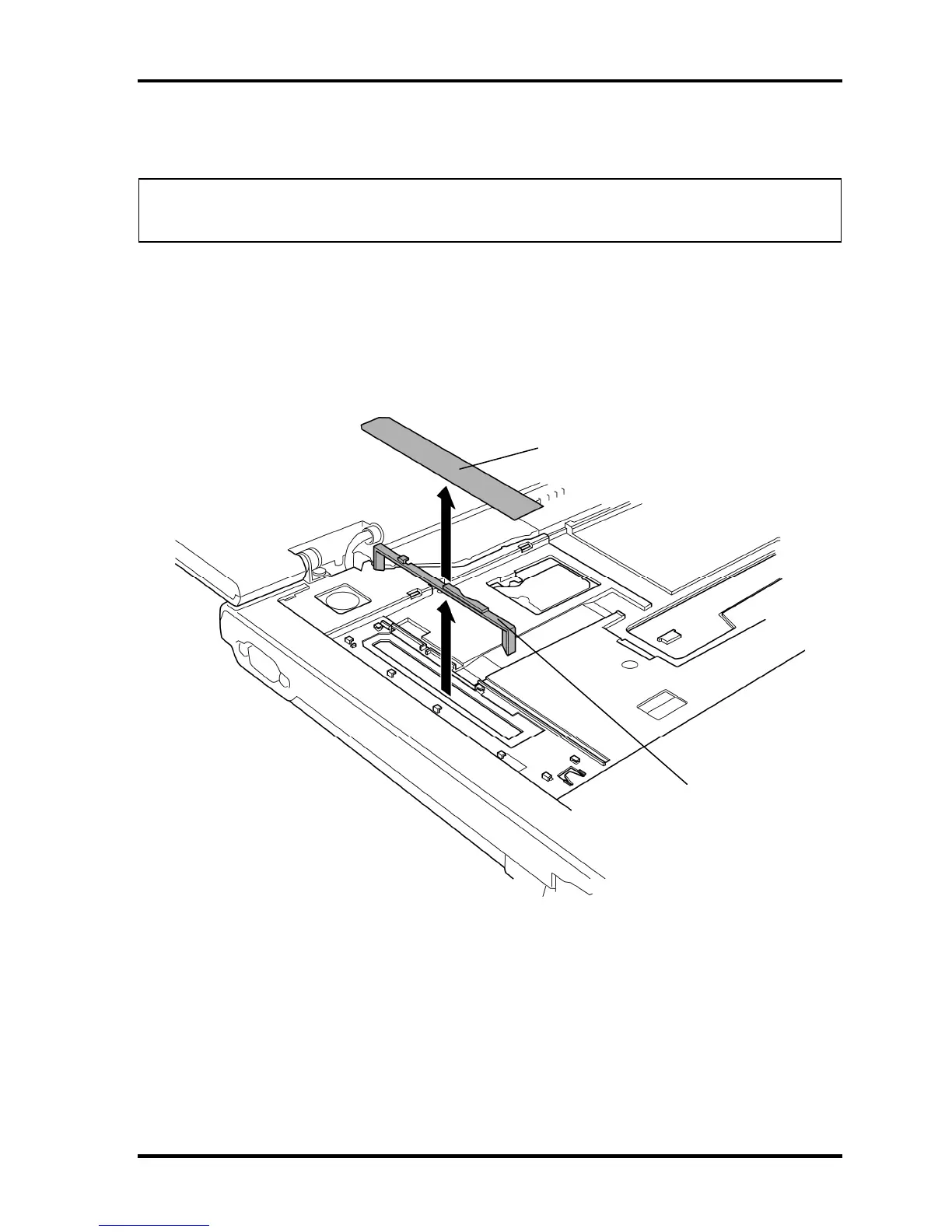

Figure4-15 Removing the fan hood
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-27
