Toshiba TECRA A9 Series Maintenance Manual

4.9 SW membrane 4 Replacement Procedures
4.9 SW membrane
Removing the SW membrane
To remove the SW membrane, follow the steps below and refer to Figure 4-13 and 4-14.
1. Lift the switch cover up while pushing the portion shown in the figure below.
Switch cover

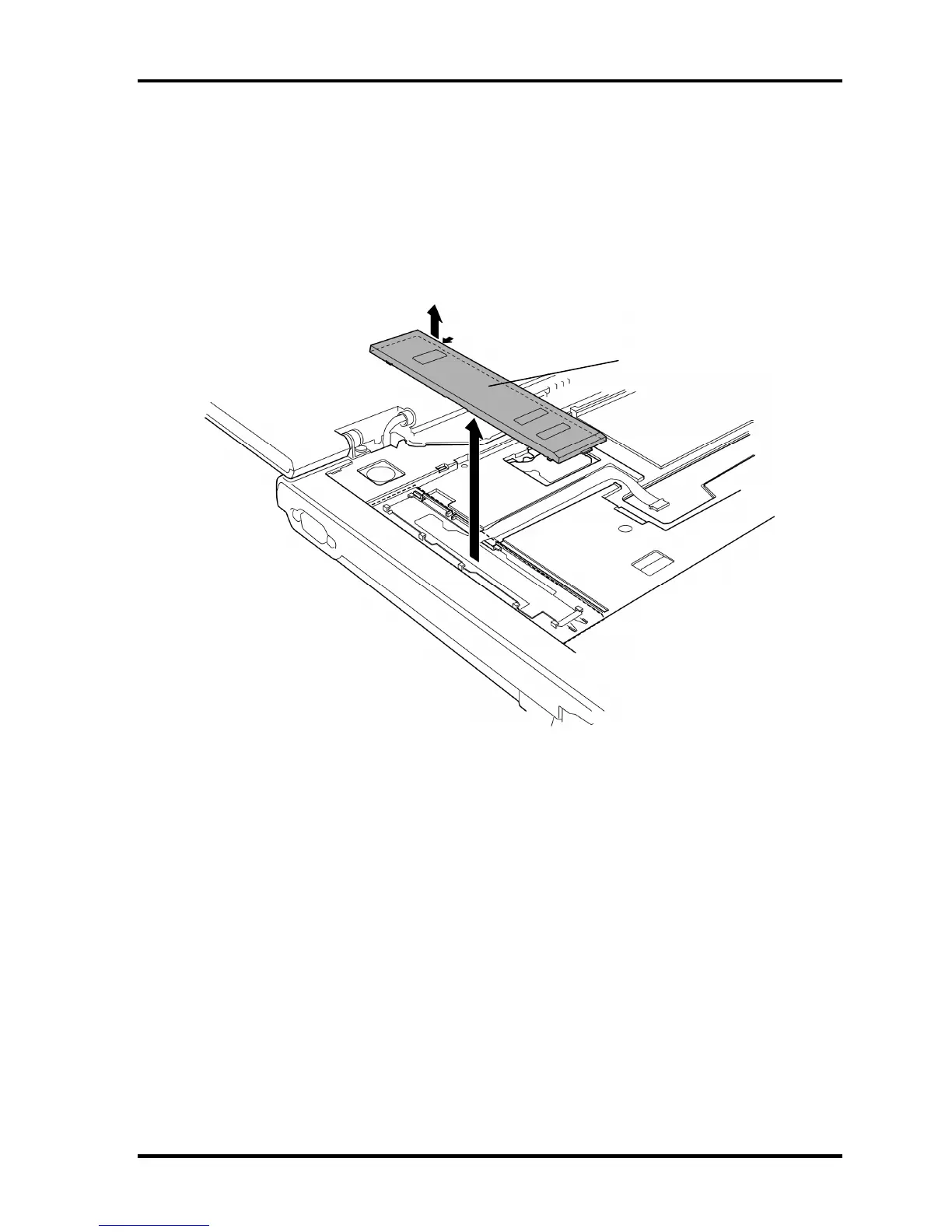

Figure 4-13 Removing the switch cover
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-25
