4 Replacement Procedures 4.9 SW membrane
2. Disconnect the SW membrane cable from the connector CN9550 on the system
board.
3. Push down the hook and slide the SW membrane in the direction in the figure below.
4. Remove the SW membrane.
SW membrane
Hook
SW membrane cable
CN9550

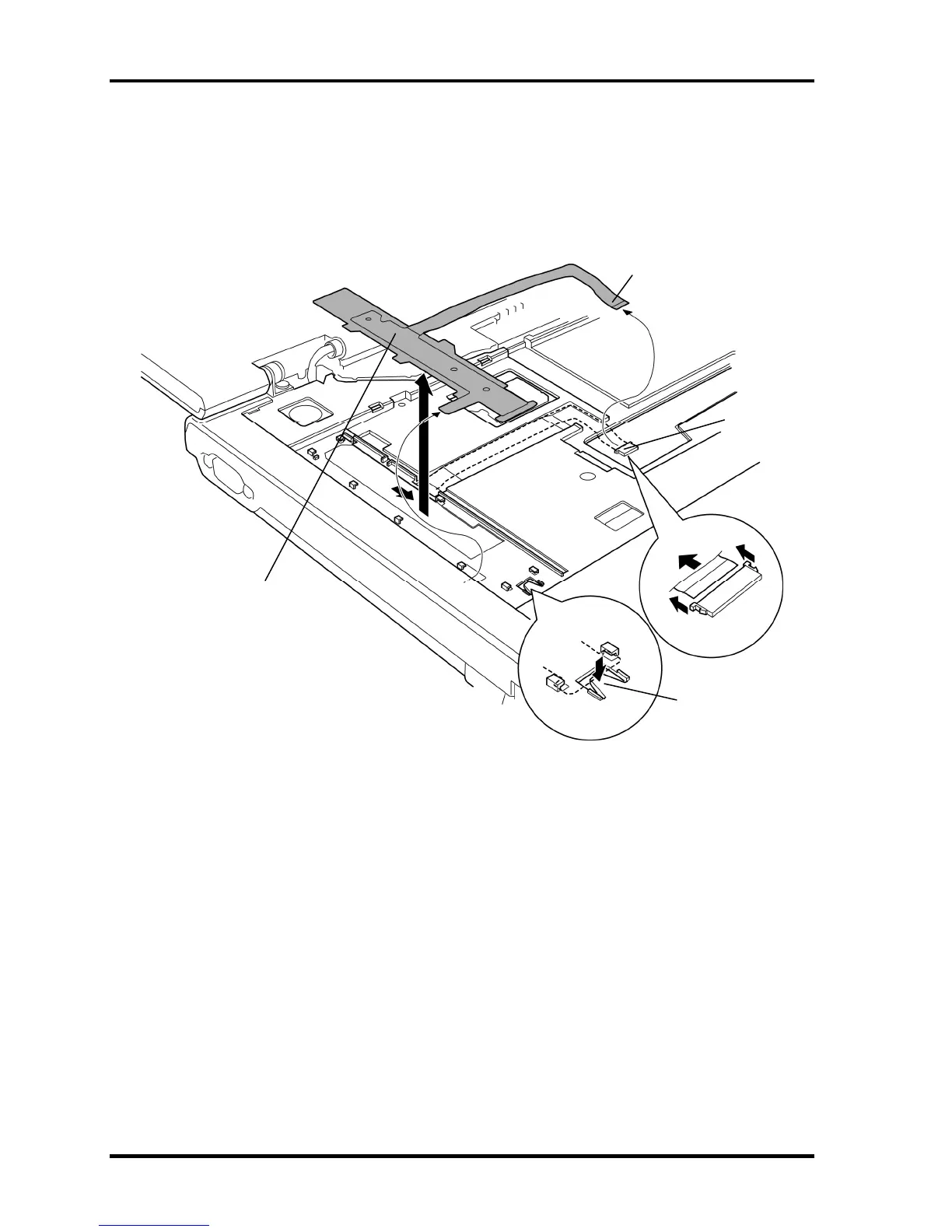

Figure 4-14 Removing the SW membrane
Installing the SW membrane
To install the SW membrane, follow the steps below and refer to Figure 4-13 and 4-14.
1. Install the SW membrane to the slot while sliding it in the opposite direction in
removing.
2. Connect the SW membrane cable to the connector CN9550 on the system board.
3. Install the switch cover while engaging latches.
