Toshiba TECRA A9 Series Maintenance Manual

1 Hardware Overview 1.7 TFT Color Display
1.7 TFT Color Display
The TFT color display consists of 15.4-inch WXGA/WXGA+ LCD module and FL inverter
board.
1.7.1 LCD Module
The LCD module used for the TFT color display uses a backlight as the light source and can
display a maximum of 16M colors with 1,280 x 800 or 1,680x1050 resolution. The Intel
Crestline-GM can control internal and external WXGA or WXGA+ support displays
simultaneously.
Figure 1-7 shows a view of the LCD module and Table 1-4 lists the specifications.

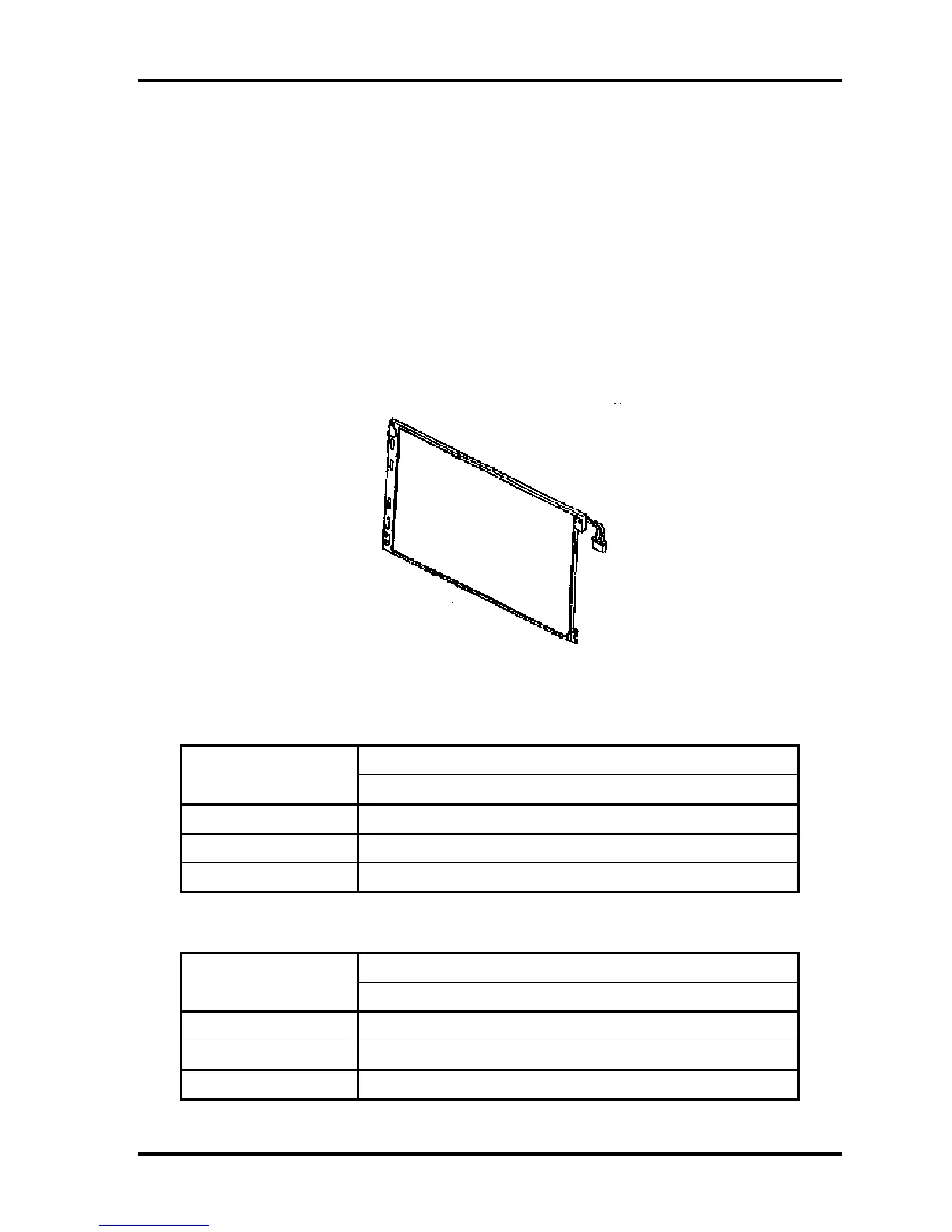

Figure 1-7 LCD module
Table 1-4 LCD module specifications (1/3)
Specifications
Item
15.41-inch WXGA TFT (G33C0003F110)
Number of Dots 1,280 (W) x 800 (H)
Dot spacing (mm) 0.25875 (H) x 0.25875 (V)
Display range (mm) 344.0 (H) x 222.0(V)x6.5 (D:Max)
Table 1-4 LCD module specifications (2/2)
Specifications
Item
15.4-inch WXGA+ TFT (G33C0003Z110)
Number of Dots 1,680 (W) x 1050 (H)
Dot spacing (mm) 0.19725 (H) x 0.19725 (V)
Display range (mm) 344.0 (H) x 222.0(V)x6.5 (D:Max)
1-20 [CONFIDENTIAL] TECRA A9(S5/P5/S200) Maintenance Manual (960-633)

Toshiba TECRA A9 Series Specifications

General

Processor	Intel Core 2 Duo
Display	15.4-inch
Display Resolution	1280 x 800 pixels
RAM	Up to 4 GB
Operating System	Windows Vista
Optical Drive	DVD-RW
Wireless	802.11a/g/n
Ports	USB 2.0, VGA, Ethernet, Headphone
