Toshiba TECRA A9 Series Maintenance Manual

Appendix B Board Layout Appendices
B.3 Serial & RGB Board (FHMLR*) Front View
(front)

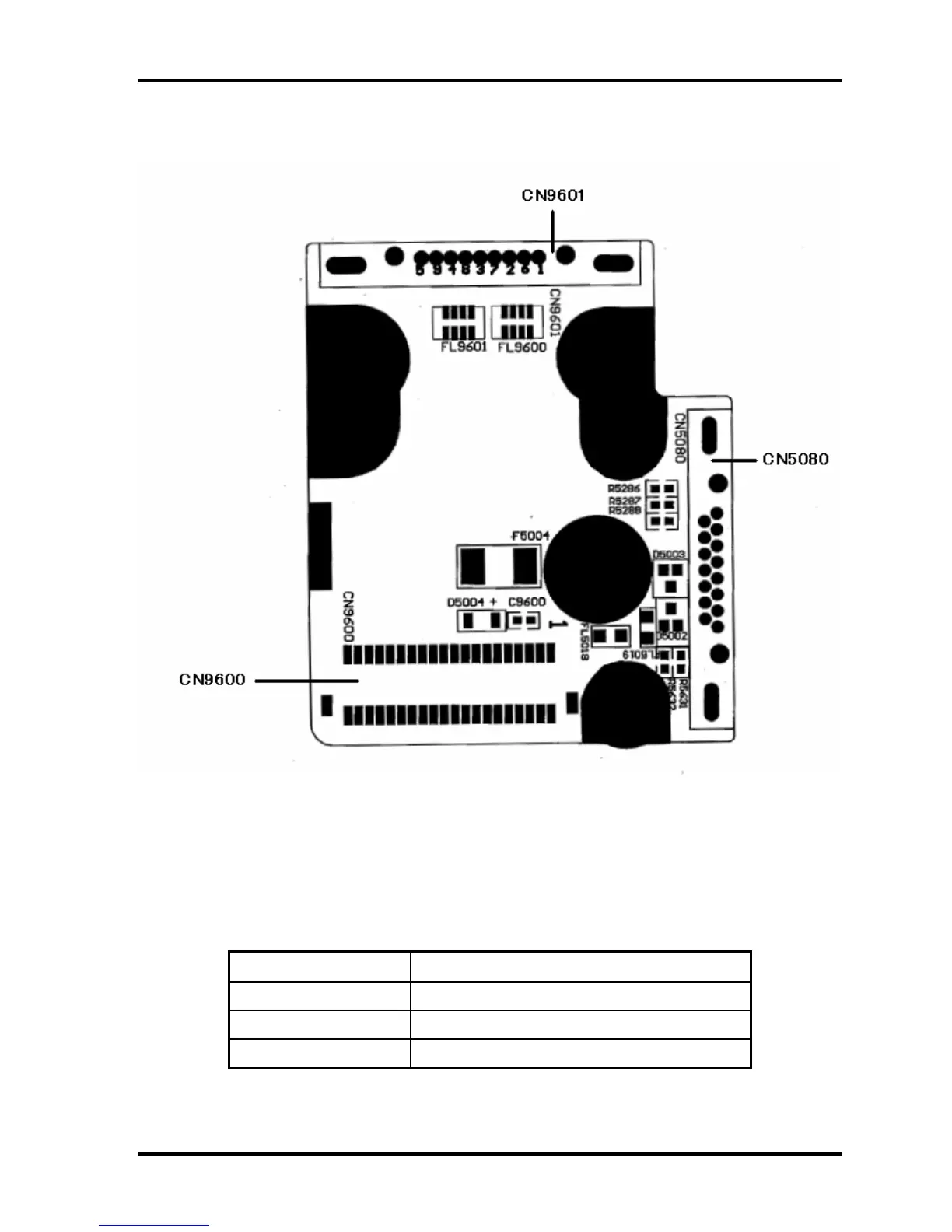

Figure B-3 Serial & RGB Board (FHMLR*) layout (front)
Table B-3 Serial & RGB (FHMLR*) connectors (front)
Number Name
CN5080 RGB interface connector
CN9600 System board interface connector
CN9601 Serial interface connector
TECRA A9(S5/P5/S200) Maintenance Manual (960-633)[CONFIDENTIAL] B-5

Toshiba TECRA A9 Series Specifications

General

Processor	Intel Core 2 Duo
Display	15.4-inch
Display Resolution	1280 x 800 pixels
RAM	Up to 4 GB
Operating System	Windows Vista
Optical Drive	DVD-RW
Wireless	802.11a/g/n
Ports	USB 2.0, VGA, Ethernet, Headphone
